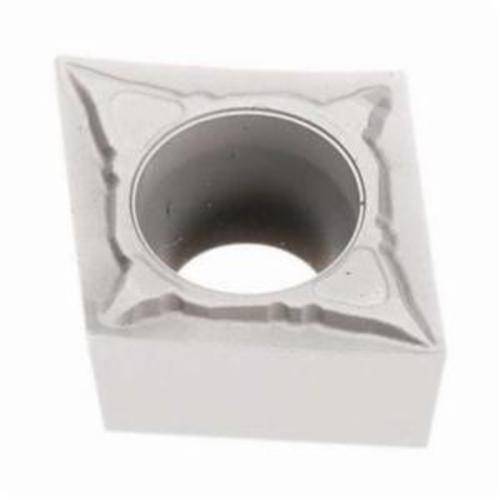

CCGX21.50.5W-F1 TP2501 DURATOMIC INSERT

CCGX21.50.5W-F1 TP2501 DURATOMIC INSERT

SEC02960381 02960381
25.65 / EA
http://schema.org/OutOfStock
CCGX21.50.5W-F1 TP2501 DURATOMIC INSERT
  • Applicable Materials: Steel
  • Chipbreaker: W-F1
  • Corner Radius: 0.2 mm, 0.2mm
  • Hand Direction: Neutral
  • Hole Diameter: 2.9 mm, 2.9mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 6.4 mm, 6.4mm
  • Insert Size: 60202
  • Insert Style: CCGX
  • ISO Code: CCGX060202W-F1 TP2501
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.098
  • Maximum Depth of Cut Metric: 2.5
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 6
  • Shape: Diamond
  • Surface Treatment: CVD-TiCN+Al2O3 Coated
  • Thickness: 2.38 mm, 2.38mm
  • ANSI Code: CCGX21.50.5W-F1 TP2501
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP2501
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
  • Item Features
Finishing Applications
