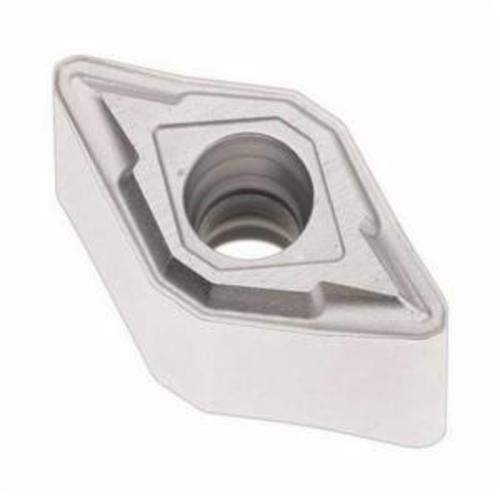

DNMX331W-MF2 TP1501 DURATOMIC INSERT
DNMX331W-MF2 TP1501 DURATOMIC INSERT
SEC02960049
02960049
29.88
/ EA
http://schema.org/OutOfStock
/Product/SEC02960049
- Applicable Materials: Steel
- Chipbreaker: W-MF2
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 3.81 mm, 3.81mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 9.53 mm, 9.53mm
- Insert Size: 110404
- Insert Style: DNMX
- ISO Code: DNMX110404W-MF2 TP1501
- Material: Carbide
- Material Grade: P
- Maximum Depth of Cut Decimal Inch: 0.148
- Maximum Depth of Cut Metric: 3.75
- Rake: Negative/Positive
- Relief Angle: 0 deg, 0°
- Seat Size: 11
- Shape: Diamond
- Surface Treatment: CVD-TiCN+Al2O3 Coated
- Thickness: 4.76 mm, 4.76mm
- ANSI Code: DNMX331W-MF2 TP1501
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TP1501
- Manufacturer Name: Seco Tools
- Application
- Item Features
Finishing Applications
