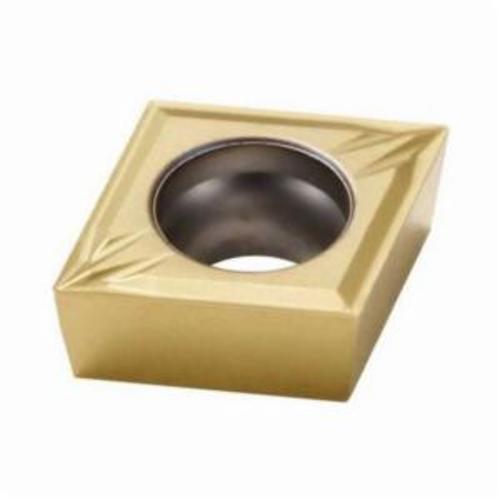

CCMT 21.51W-MF2 CP500 INSERT

CCMT 21.51W-MF2 CP500 INSERT

SEC02887215 02887215
14.84 / EA
http://schema.org/OutOfStock
CCMT 21.51W-MF2 CP500 INSERT
  • Applicable Materials: Stainless Steel
  • Chipbreaker: W-MF2
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 2.9 mm, 2.9mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 6.4 mm, 6.4mm
  • Insert Size: 60204
  • Insert Style: CCMT
  • ISO Code: CCMT060204W-MF2 CP500
  • Material: Carbide
  • Material Grade: M
  • Maximum Depth of Cut Decimal Inch: 0.098
  • Maximum Depth of Cut Metric: 2.5
  • Rake: Negative/Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 6
  • Shape: Diamond
  • Surface Treatment: PVD-TiAlN+TiN Coated
  • Thickness: 2.38 mm, 2.38mm
  • ANSI Code: CCMT21.51W-MF2 CP500
  • Country of Origin: CZ
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CP500
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium and Finishing
