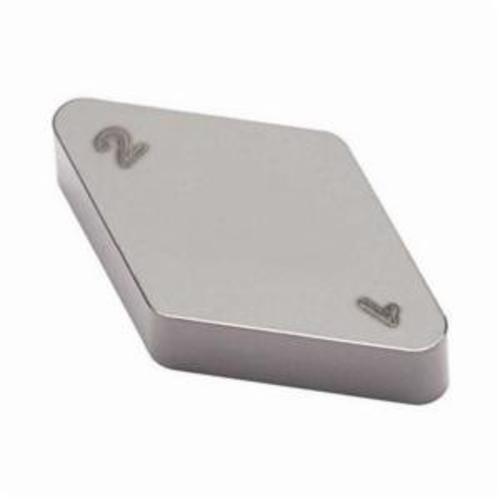

DNGN 323S-00420 CBN010 INSERT

DNGN 323S-00420 CBN010 INSERT

SEC02848181 02848181
267.84 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Hard Materials
  • Corner Radius: 1.2 mm, 1.2mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 9.525 mm, 9.525mm
  • Insert Size: 110312
  • Insert Style: DNGN
  • ISO Code: DNGN110312S-01020 CBN010
  • Material: PCBN
  • Material Grade: H
  • Maximum Depth of Cut Decimal Inch: 0.148
  • Maximum Depth of Cut Metric: 3.75
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 3.18 mm, 3.18mm
  • ANSI Code: DNGN323S-00420 CBN010
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CBN010
  • Manufacturer Name: Seco Tools
Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
Pack: 1/PK
