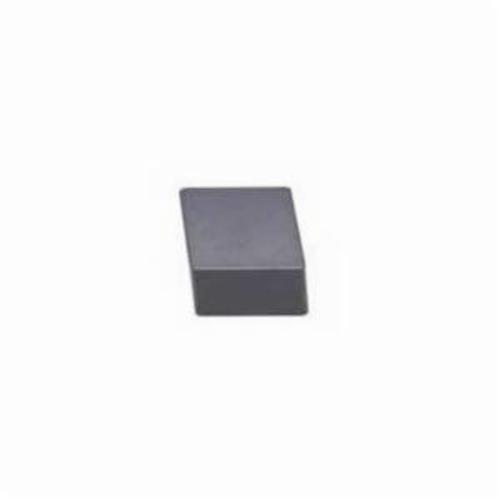

CNGN 453S-00420 CS100 INSERT

CNGN 453S-00420 CS100 INSERT

SEC02826381 02826381
25.94 / EA
http://schema.org/OutOfStock
  • Applicable Materials: Super Alloys and Titanium
  • Corner Radius: 1.2 mm, 1.2mm
  • Hand Direction: Neutral
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 12.7 mm, 12.7mm
  • Insert Size: 120712
  • Insert Style: CNGN
  • ISO Code: CNGN120712S-01020 CS100
  • Material: Ceramic
  • Material Grade: S
  • Maximum Depth of Cut Decimal Inch: 0.207
  • Maximum Depth of Cut Metric: 5.25
  • Relief Angle: 0 deg, 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: UNCOATED
  • Thickness: 4.76 mm, 4.76mm
  • ANSI Code: CNGN453S-00420 CS100
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CS100
  • Manufacturer Name: Seco Tools
Secomax ceramics include a range of products developed to meet the manufacturing industries ever increasing demands on productivity and product performance. The inserts are die-pressed and sintered by a HIP process using very fine and pure raw materials with fine microstructure to reach excellent material properties. All surfaces are then ground ensuring a product with superior dimensions and tolerances.
Pack: 1/PK
