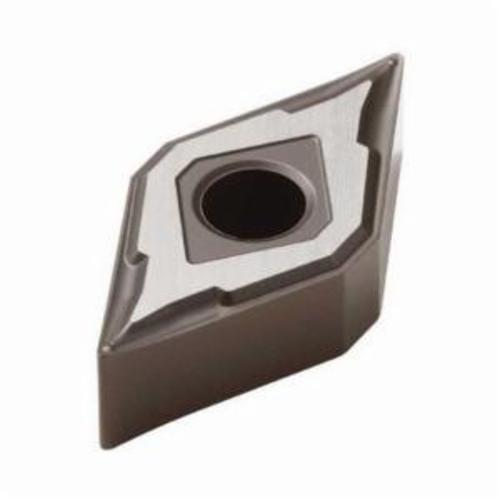

DNMG 432-MF2 TP1030 INSERT

DNMG 432-MF2 TP1030 INSERT

SEC02789991 02789991
31.67 / EA
http://schema.org/OutOfStock
DNMG 432-MF2 TP1030 INSERT
  • Applicable Materials: Steel
  • Chipbreaker: MF2
  • Corner Radius: 0.8mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.15mm
  • Included Angle: 55°
  • Inscribed Circle: 12.7mm
  • Insert Size: 150408
  • Insert Style: DNMG
  • ISO Code: DNMG150408-MF2 TP1030
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.207
  • Maximum Depth of Cut Metric: 5.25
  • Rake: Negative/Positive
  • Relief Angle: 0°
  • Seat Size: 15
  • Shape: Diamond
  • Surface Treatment: Cermet-TiAlSiN Coated
  • Thickness: 4.76mm
  • ANSI Code: DNMG432-MF2 TP1030
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP1030
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium and Finishing
