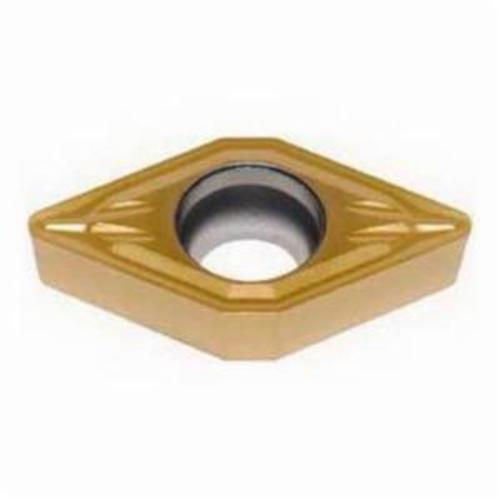

DCMT 21.50.5-MF2 CP500 INSERT
DCMT 21.50.5-MF2 CP500 INSERT
SEC02755037
02755037
19.64
/ EA
http://schema.org/OutOfStock
/Product/SEC02755037
- Applicable Materials: Stainless Steel
- Chipbreaker: MF2
- Corner Radius: 0.2 mm, 0.2mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 6.4 mm, 6.4mm
- Insert Size: 070202, 70202
- Insert Style: DCMT
- ISO Code: DCMT070202-MF2 CP500
- Material: Carbide
- Material Grade: M
- Maximum Depth of Cut Decimal Inch: 0.108
- Maximum Depth of Cut Metric: 2.75
- Rake: Negative/Positive
- Relief Angle: 7 deg, 7°
- Seat Size: 07, 7
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+TiN Coated
- Thickness: 2.38 mm, 2.38mm
- ANSI Code: DCMT21.50.5-MF2 CP500
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Application
Medium and Finishing
