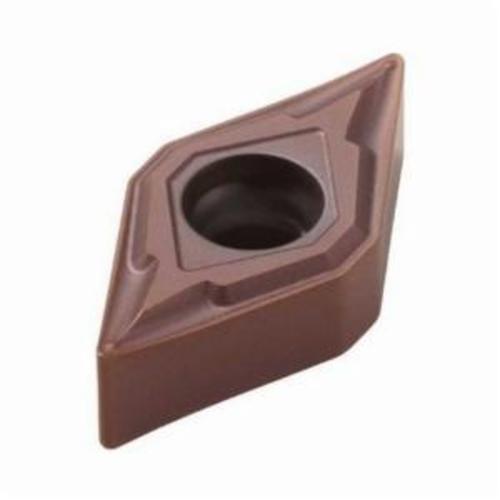

DNMU 331-MF2 TP1030 INSERT

DNMU 331-MF2 TP1030 INSERT

SEC02754878 02754878
26.31 / EA
http://schema.org/OutOfStock
DNMU 331-MF2 TP1030 INSERT
  • Applicable Materials: Steel
  • Chipbreaker: MF2
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 3.81 mm, 3.81mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 9.53 mm, 9.53mm
  • Insert Size: 110404
  • Insert Style: DNMU
  • ISO Code: DNMU110404-MF2 TP1030
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.148
  • Maximum Depth of Cut Metric: 3.75
  • Rake: Negative/Positive
  • Relief Angle: 0 deg, 0°
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: Cermet-TiAlSiN Coated
  • Thickness: 4.76 mm, 4.76mm
  • ANSI Code: DNMU331-MF2 TP1030
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP1030
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium and Finishing
