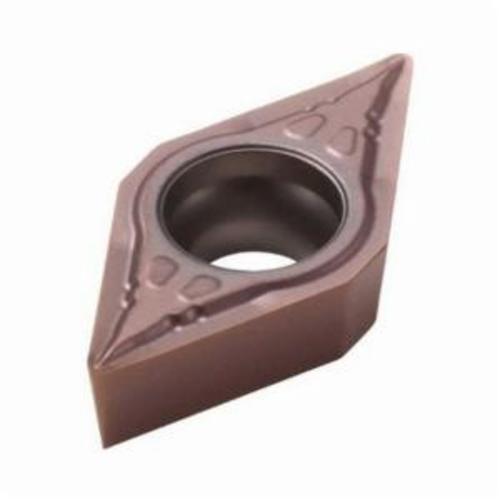

DCMX 32.51W-F1 TP1030 INSERT

DCMX 32.51W-F1 TP1030 INSERT

SEC02754871 02754871
26.87 / EA
http://schema.org/OutOfStock
DCMX 32.51W-F1 TP1030 INSERT
  • Applicable Materials: Steel
  • Chipbreaker: W-F1
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 4.5 mm, 4.5mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 9.53 mm, 9.53mm
  • Insert Size: 11T304
  • Insert Style: DCMX
  • ISO Code: DCMX11T304W-F1 TP1030
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.148
  • Maximum Depth of Cut Metric: 3.75
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: Cermet-TiAlSiN Coated
  • Thickness: 3.97 mm, 3.97mm
  • ANSI Code: DCMX32.51W-F1 TP1030
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP1030
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
  • Item Features
Finishing Applications
