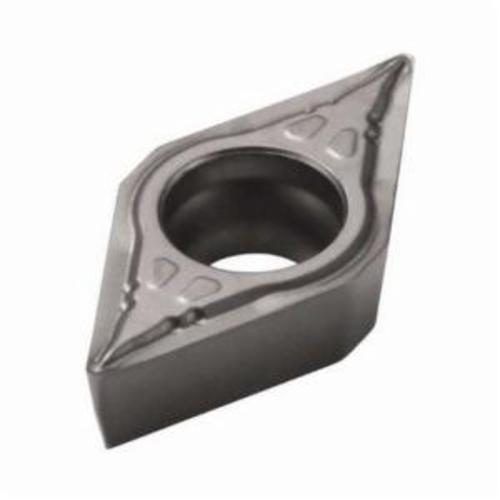

DCMT 32.50.5-F1 TP1020 INSERT

DCMT 32.50.5-F1 TP1020 INSERT

SEC02754848 02754848
26.40 / EA
http://schema.org/OutOfStock
DCMT 32.50.5-F1 TP1020 INSERT
  • Applicable Materials: Steel
  • Chipbreaker: F1
  • Corner Radius: 0.2 mm, 0.2mm
  • Hand Direction: Neutral
  • Hole Diameter: 4.5 mm, 4.5mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 9.5 mm, 9.5mm
  • Insert Size: 11T302
  • Insert Style: DCMT
  • ISO Code: DCMT11T302-F1 TP1020
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.148
  • Maximum Depth of Cut Metric: 3.75
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: Cermet Coated
  • Thickness: 3.97 mm, 3.97mm
  • ANSI Code: DCMT32.50.5-F1 TP1020
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP1020
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Finishing Applications
