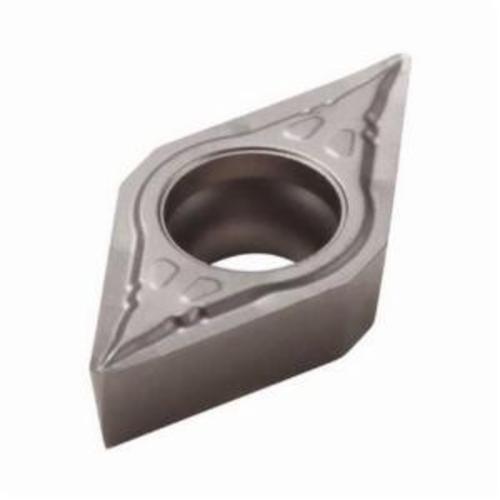

DCGT 32.51-F1 TP1020 INSERT

DCGT 32.51-F1 TP1020 INSERT

SEC02754839 02754839
36.92 / EA
http://schema.org/OutOfStock
DCGT 32.51-F1 TP1020 INSERT
  • Applicable Materials: Steel
  • Chipbreaker: F1
  • Corner Radius: 0.4 mm, 0.4mm
  • Hole Diameter: 4.5 mm, 4.5mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 9.5 mm, 9.5mm
  • Insert Size: 11T304
  • Insert Style: DCGT
  • ISO Code: DCGT11T304-F1 TP1020
  • Material: Carbide
  • Material Grade: P
  • Maximum Depth of Cut Decimal Inch: 0.148
  • Maximum Depth of Cut Metric: 3.75
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 11
  • Shape: Diamond
  • Surface Treatment: Cermet Coated
  • Thickness: 3.97 mm, 3.97mm
  • ANSI Code: DCGT32.51-F1 TP1020
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TP1020
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
  • Item Features
Finishing Applications
