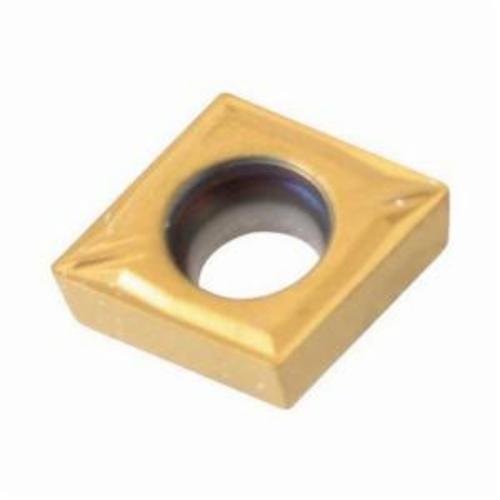

CCMT 21.50.5-MF2 CP500 INSERT
CCMT 21.50.5-MF2 CP500 INSERT
SEC02754787
02754787
14.84
/ EA
http://schema.org/OutOfStock
/Product/SEC02754787
- Applicable Materials: Stainless Steel
- Chipbreaker: MF2
- Corner Radius: 0.2 mm, 0.2mm
- Hand Direction: Neutral
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 6.4 mm, 6.4mm
- Insert Size: 60202
- Insert Style: CCMT
- ISO Code: CCMT060202-MF2 CP500
- Material: Carbide
- Material Grade: M
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Negative/Positive
- Relief Angle: 7 deg, 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+TiN Coated
- Thickness: 2.38 mm, 2.38mm
- ANSI Code: CCMT21.50.5-MF2 CP500
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Application
Medium and Finishing
