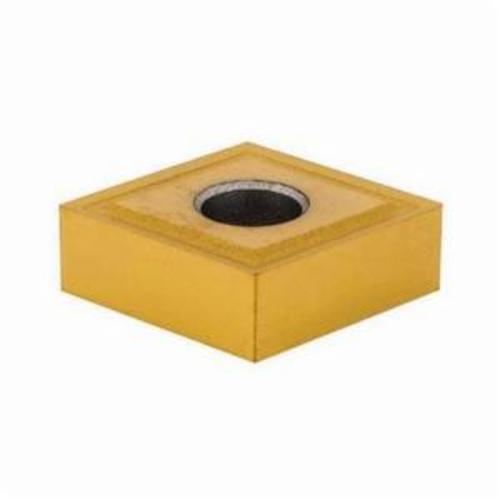

CNGP 430.5-M1 TS2500 INSERT

CNGP 430.5-M1 TS2500 INSERT

SEC02615953 02615953
29.88 / EA
http://schema.org/OutOfStock
CNGP 430.5-M1 TS2500 INSERT
  • Applicable Materials: Super Alloys and Titanium
  • Chipbreaker: M1
  • Corner Radius: 0.2 mm, 0.2mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.15 mm, 5.15mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 12.7 mm, 12.7mm
  • Insert Size: 120402
  • Insert Style: CNGG
  • ISO Code: CNGG120402-M1 TS2500
  • Material: Carbide
  • Material Grade: S
  • Maximum Depth of Cut Decimal Inch: 0.207
  • Maximum Depth of Cut Metric: 5.25
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: PVD-TiAlN+TiN Coated
  • Thickness: 4.76 mm, 4.76mm
  • ANSI Code: CNGP430.5-M1 TS2500
  • Country of Origin: CZ
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TS2500
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
  • Item Features
Medium Applications
