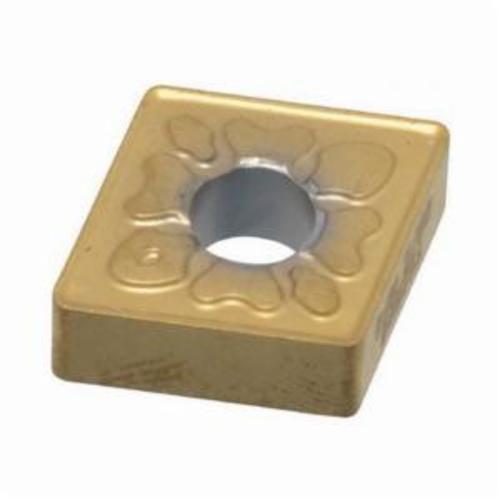

CNMG 431-MF4 TS2000 INSERT

CNMG 431-MF4 TS2000 INSERT

SEC02615926 02615926
19.92 / EA
http://schema.org/OutOfStock
CNMG 431-MF4 TS2000 INSERT
  • Applicable Materials: Stainless Steel and Titanium/Super Alloys
  • Chipbreaker: MF4
  • Corner Radius: 0.4 mm, 0.4mm
  • Hand Direction: Neutral
  • Hole Diameter: 5.15 mm, 5.15mm
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 12.7 mm, 12.7mm
  • Insert Size: 120404
  • Insert Style: CNMG
  • ISO Code: CNMG120404-MF4 TS2000
  • Material: Carbide
  • Material Grade: M, S
  • Maximum Depth of Cut Decimal Inch: 0.207
  • Maximum Depth of Cut Metric: 5.25
  • Rake: Negative
  • Relief Angle: 0 deg, 0°
  • Seat Size: 12
  • Shape: Diamond
  • Surface Treatment: PVD-TiAlN+TiN Coated
  • Thickness: 4.76 mm, 4.76mm
  • ANSI Code: CNMG431-MF4 TS2000
  • Country of Origin: CZ
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: TS2000
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Medium and Finishing
