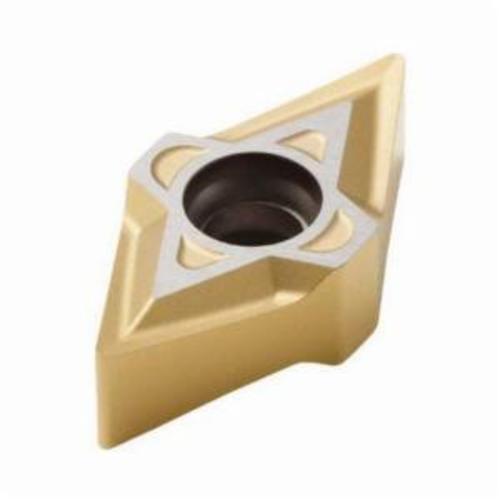

DNMU331-MF1 CP500 INSERT
DNMU331-MF1 CP500 INSERT
SEC02543697
02543697
26.31
/ EA
http://schema.org/OutOfStock
/Product/SEC02543697
- Applicable Materials: Stainless Steel
- Chipbreaker: MF1
- Corner Radius: 0.4 mm, 0.4mm
- Hand Direction: Neutral
- Hole Diameter: 3.81 mm, 3.81mm
- Included Angle: 55 deg, 55°
- Inscribed Circle: 9.53 mm, 9.53mm
- Insert Size: 110404
- Insert Style: DNMU
- ISO Code: DNMU110404-MF1 CP500
- Material: Carbide
- Material Grade: M
- Maximum Depth of Cut Decimal Inch: 0.148
- Maximum Depth of Cut Metric: 3.75
- Rake: Negative
- Relief Angle: 0 deg, 0°
- Seat Size: 11
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+TiN Coated
- Thickness: 4.76 mm, 4.76mm
- ANSI Code: DNMU331-MF1 CP500
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CP500
- Manufacturer Name: Seco Tools
- Application
Medium and Finishing
