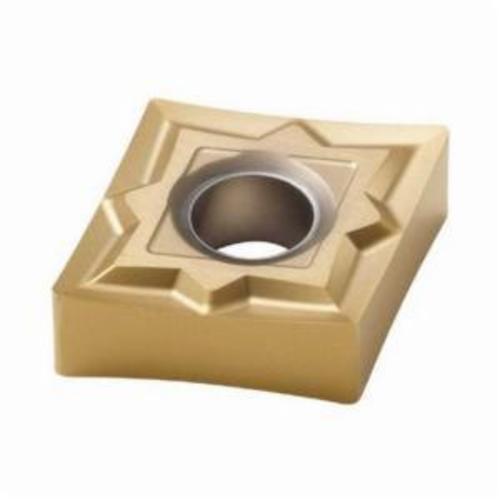

CNMP 432-MF1 CP200P INSERT
CNMP 432-MF1 CP200P INSERT
SEC02515451
02515451
25.09
/ EA
http://schema.org/OutOfStock
/Product/SEC02515451
- Applicable Materials: Stainless Steel and Titanium/Super Alloys
- Chipbreaker: MF1
- Corner Radius: 0.8 mm, 0.8mm
- Hand Direction: Neutral
- Hole Diameter: 5.15 mm, 5.15mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 12.7 mm, 12.7mm
- Insert Size: 120408
- Insert Style: CNMG
- ISO Code: CNMG120408GE-MF1 CP200
- Material: Carbide
- Material Grade: M, S
- Maximum Depth of Cut Decimal Inch: 0.207
- Maximum Depth of Cut Metric: 5.25
- Rake: Negative
- Relief Angle: 0 deg, 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+TiN Coated
- Thickness: 4.76 mm, 4.76mm
- ANSI Code: CNMG432GE-MF1 CP200
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CP200
- Manufacturer Name: Seco Tools
- Application
Medium and Finishing
