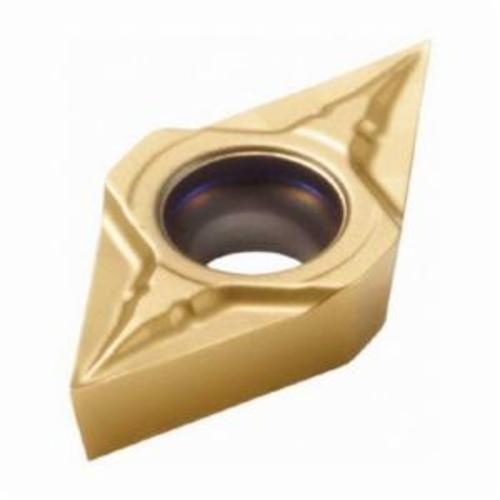

DCGT 21.50.0-F1 CP500 INSERT

DCGT 21.50.0-F1 CP500 INSERT

SEC02430319 02430319
27.53 / EA
http://schema.org/OutOfStock
DCGT 21.50.0-F1 CP500 INSERT
  • Applicable Materials: Stainless Steel
  • Chipbreaker: F1
  • Corner Radius: 0.05 mm, 0.05mm
  • Hole Diameter: 2.9 mm, 2.9mm
  • Included Angle: 55 deg, 55°
  • Inscribed Circle: 6.4 mm, 6.4mm
  • Insert Size: 702005
  • Insert Style: DCGT
  • ISO Code: DCGT0702005-F1 CP500
  • Material: Carbide
  • Material Grade: M
  • Maximum Depth of Cut Decimal Inch: 0.108
  • Maximum Depth of Cut Metric: 2.75
  • Rake: Positive
  • Relief Angle: 7 deg, 7°
  • Seat Size: 7
  • Shape: Diamond
  • Surface Treatment: PVD-TiAlN+TiN Coated
  • Thickness: 2.38 mm, 2.38mm
  • ANSI Code: DCGT21.50.0-F1 CP500
  • Country of Origin: SE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: CP500
  • Manufacturer Name: Seco Tools
Pack: 10/PK
QTY
Add to List
  • Application
Finishing Applications
