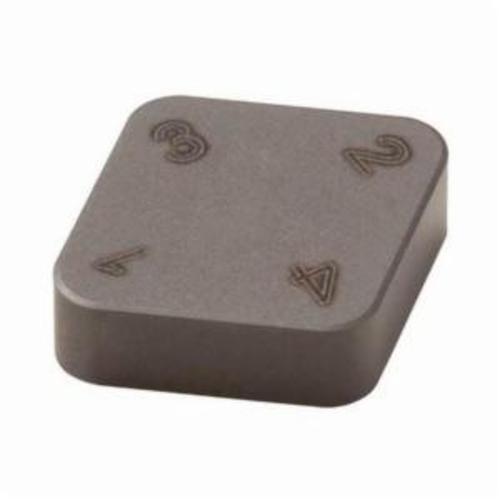

CNMN 323S CBN300 INSERT
CNMN 323S CBN300 INSERT
SEC00097838
00097838
254.88
/ EA
http://schema.org/OutOfStock
/Product/SEC00097838
- Applicable Materials: Cast Iron
- Corner Radius: 1.2 mm, 1.2mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 9.53 mm, 9.53mm
- Insert Size: 90312
- Insert Style: CNMN
- ISO Code: CNMN090312S CBN300
- Material: PCBN
- Material Grade: K
- Maximum Depth of Cut Decimal Inch: 0.138
- Maximum Depth of Cut Metric: 3.5
- Relief Angle: 0 deg, 0°
- Seat Size: 9
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 3.18 mm, 3.18mm
- ANSI Code: CNMN323S CBN300
- Country of Origin: SE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: CBN300
- Manufacturer Name: Seco Tools
Polycrystalline cubic boron nitride (PCBN) is a material which is sintered at extremely high pressure and high temperature into a wear-resistant material with properties close to those of diamond. Due to the hot hardness, oxidation resistance and fracture toughness of the material, inserts made of PCBN have excellent edge strength and long tool life when machining hard ferrous materials and pearlitic grey cast iron.
