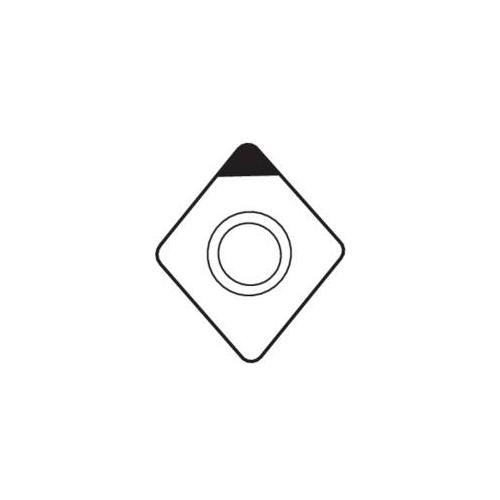

CCMW 32.50.5F-L1 PCD20 TURNING INSERT

CCMW 32.50.5F-L1 PCD20 TURNING INSERT

SEC00089769 00089769
140.40 / EA
http://schema.org/OutOfStock
CCMW 32.50.5F-L1 PCD20 TURNING INSERT
  • Chipbreaker: L1
  • Corner Radius: 0.008 in, 0.008in
  • Hole Diameter: 0.177 in, 0.177in
  • Included Angle: 80 deg, 80°
  • Inscribed Circle: 0.375 in, 0.375in
  • Insert Size: 9
  • Insert Style: CCMW
  • Material Grade: PCD
  • Relief Angle: 7 deg, 7°
  • Seat Size: 9
  • Shape: Diamond
  • Thickness: 0.156 in, 0.156in
  • Country of Origin: DE
  • Has Attributes: Yes
  • Has Image: Yes
  • Manufacturer Grade: PCD20
  • Manufacturer Name: Seco Tools
  • Series: CCMW
QTY
Add to List
  • Item Features
  • Standards
  • Significantly reduce production costs when machining aluminum alloys, titanium and other non-ferrous materials
  • PCD (polycrystalline cubic diamond) is an advanced material that comes as a result of sintering together selected diamond particles at high pressure and temperature
