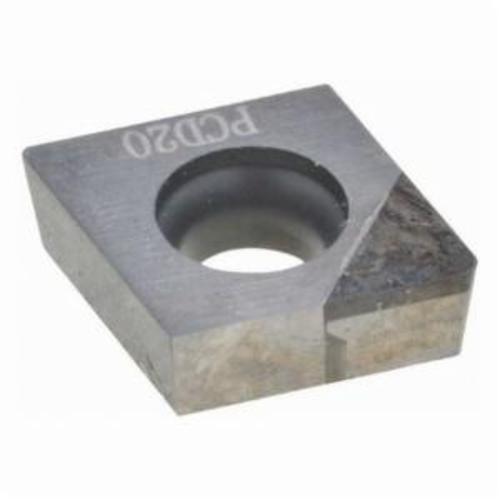

CCMW 21.52F-L1 PCD20 PCD TURNING INSERT
CCMW 21.52F-L1 PCD20 PCD TURNING INSERT
SEC00005685
00005685
140.40
/ EA
http://schema.org/OutOfStock
/Product/SEC00005685
- Chipbreaker: L1
- Corner Radius: 0.8 mm, 0.8mm
- Hole Diameter: 2.9 mm, 2.9mm
- Included Angle: 80 deg, 80°
- Inscribed Circle: 6.4 mm, 6.4mm
- Insert Size: 60208
- Insert Style: CCMW
- ISO Code: CCMW060208F-L1 PCD20
- Material: PCD
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Relief Angle: 7 deg, 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 2.38 mm, 2.38mm
- ANSI Code: CCMW21.52F-L1 PCD20
- Country of Origin: DE
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PCD20
- Manufacturer Name: Seco Tools
Polycrystalline diamond (PCD) is produced by sintering together carefully selected particles of diamond under conditions of high temperature and high pressure. PCD cutting tools combine the hardness, abrasion resistance and thermal conductivity of diamond with the toughness of tungsten carbide.
