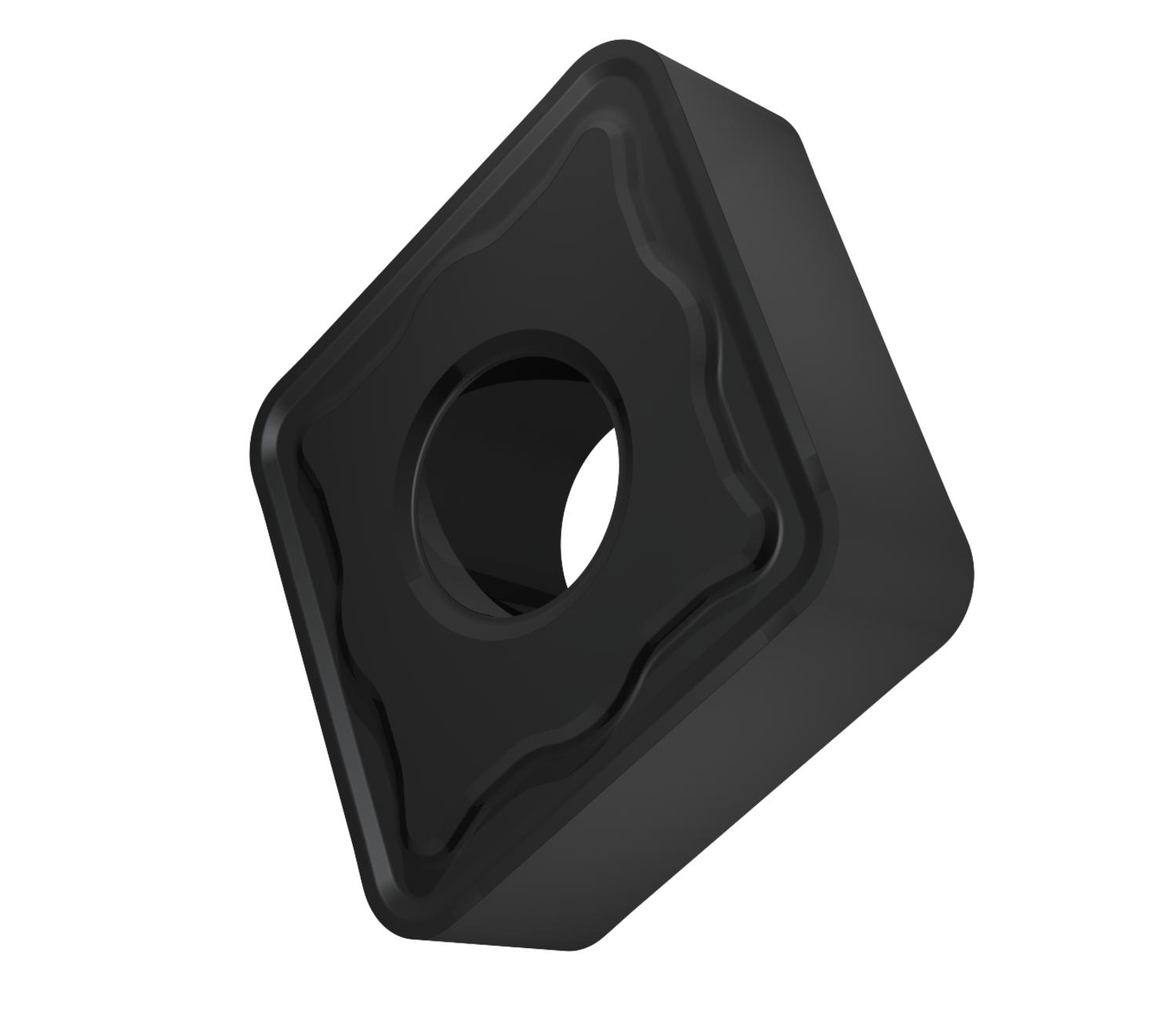

CNMG 434-KR:T5315 TURNING INSERT
CNMG 434-KR:T5315 TURNING INSERT
PRA8377237
8377237
10.14
/ EA
http://schema.org/OutOfStock
/Product/PRA8377237
- Applicable Materials: Steel and Cast Steel/Hardened Materials/Cast Iron
- Chipbreaker: KR
- Corner Radius: 0.063in
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 12
- Insert Style: CNMG
- ISO Code: CNMG120416E-KR:T5315
- Material Grade: P/H/K
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 3/16in
- ANSI Code: CNMG434-KR:T5315
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.508in
- Manufacturer Grade: T5315
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to heavy machining of cast-irons
ANSI Standards|ISO Standards|PROP65
