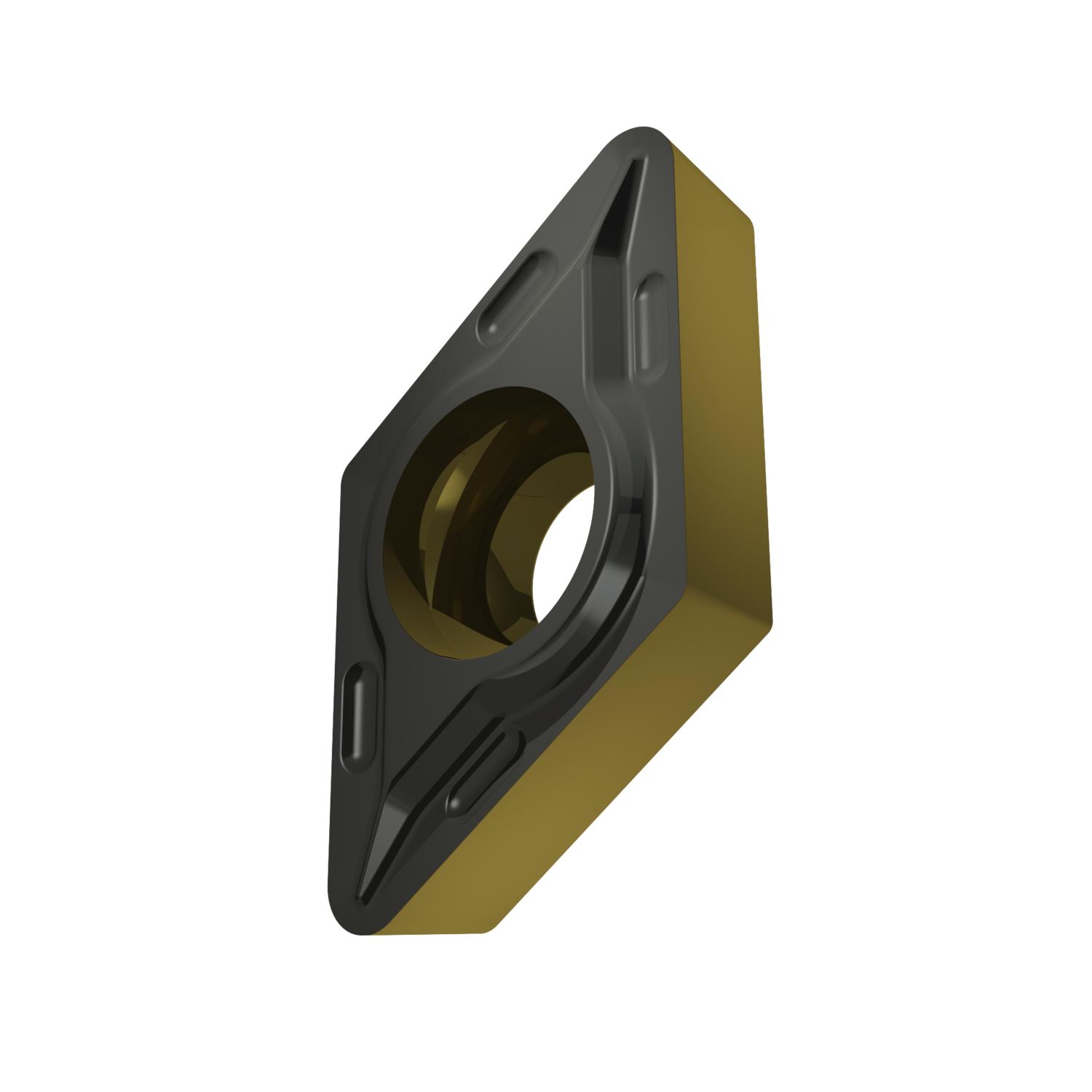

DCMT 21.52-FF2:T9415 TURNING INSERT
DCMT 21.52-FF2:T9415 TURNING INSERT
PRA8345942
8345942
8.13
/ EA
http://schema.org/OutOfStock
/Product/PRA8345942
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: FF2
- Corner Radius: 0.031in
- Hole Diameter: 0.11in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: 7
- Insert Style: DCMT
- ISO Code: DCMT070208E-FF2:T9415
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.024 to 0.079
- Rake: Positive
- Relief Angle: 7°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 3/32in
- ANSI Code: DCMT21.52-FF2:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.307in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Single
- Application
- Standards
For fine to medium machining of steels
ANSI Standards|ISO Standards|PROP65
