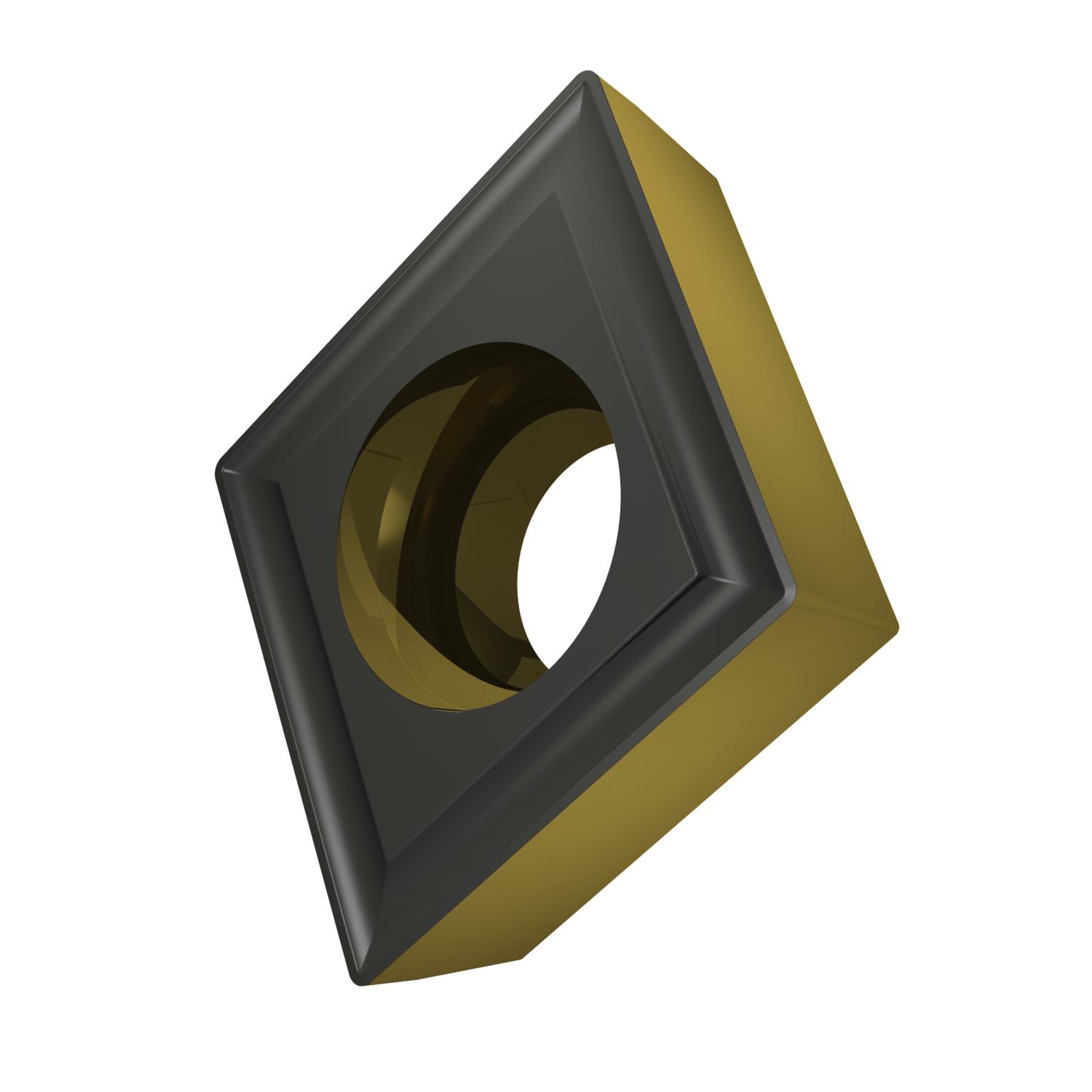

CCMT 431-RM3:T9415 TURNING INSERT
CCMT 431-RM3:T9415 TURNING INSERT
PRA8345924
8345924
11.70
/ EA
http://schema.org/OutOfStock
/Product/PRA8345924
- Applicable Materials: Steel and Cast Steel/Hardened Materials/Cast Iron
- Chipbreaker: RM3
- Corner Radius: 0.016in
- Hole Diameter: 0.217in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 12
- Insert Style: CCMT
- ISO Code: CCMT120404E-RM3:T9415
- Material Grade: P/H/K
- Rake: Positive
- Relief Angle: 7°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 3/16in
- ANSI Code: CCMT431-RM3:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.508in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Single
- Application
- Standards
For fine to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
