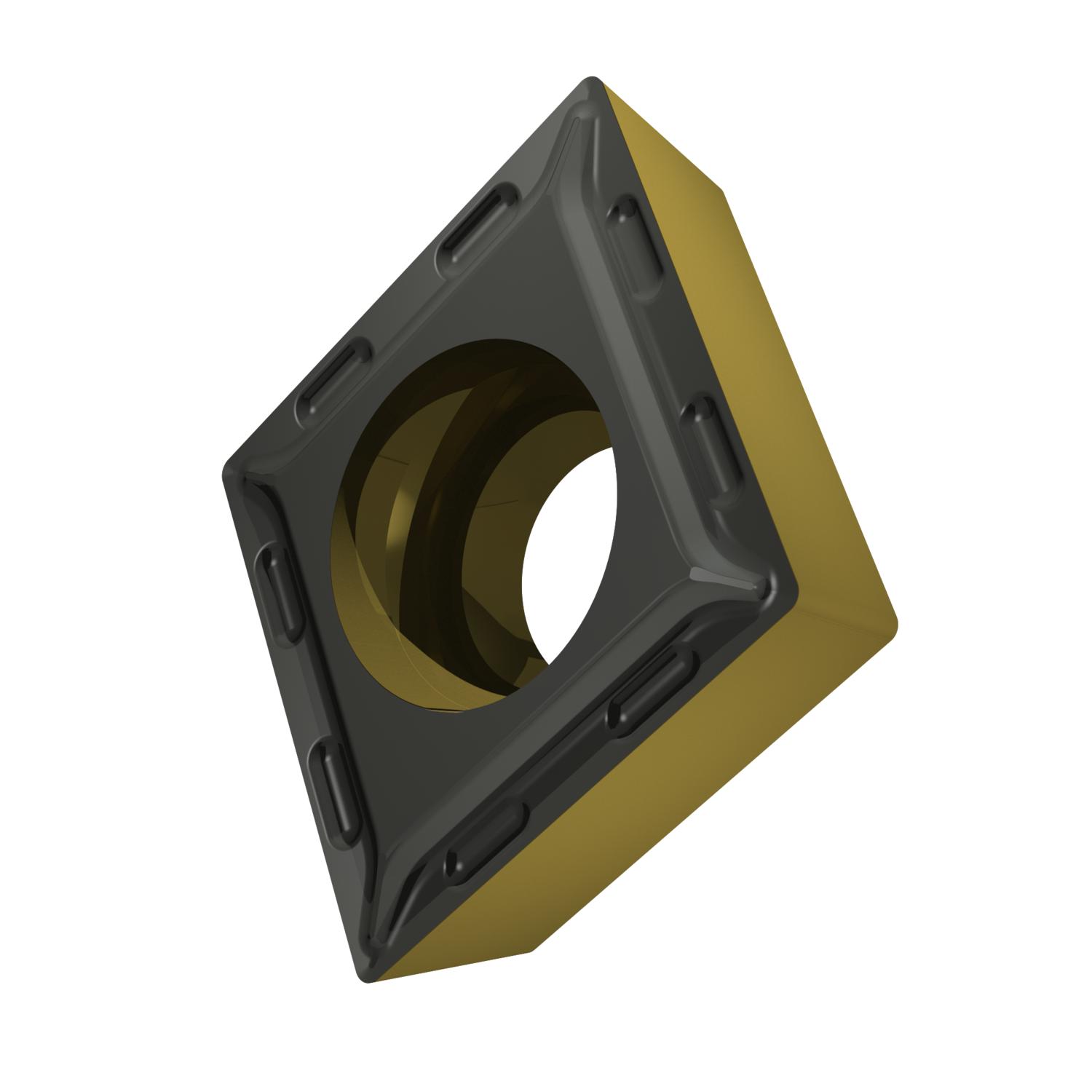

CCMT 21.50.5-FF2:T9415 TURNING INSERT
CCMT 21.50.5-FF2:T9415 TURNING INSERT
PRA8345914
8345914
7.69
/ EA
http://schema.org/OutOfStock
/Product/PRA8345914
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: FF2
- Corner Radius: 0.008in
- Hole Diameter: 0.11in
- Included Angle: 80°
- Inscribed Circle: 1/4in
- Insert Size: 6
- Insert Style: CCMT
- ISO Code: CCMT060202E-FF2:T9415
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.008 to 0.059
- Rake: Positive
- Relief Angle: 7°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 3/32in
- ANSI Code: CCMT21.50.5-FF2:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.252in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Single
- Application
- Standards
For fine to medium machining of steels
ANSI Standards|ISO Standards|PROP65
