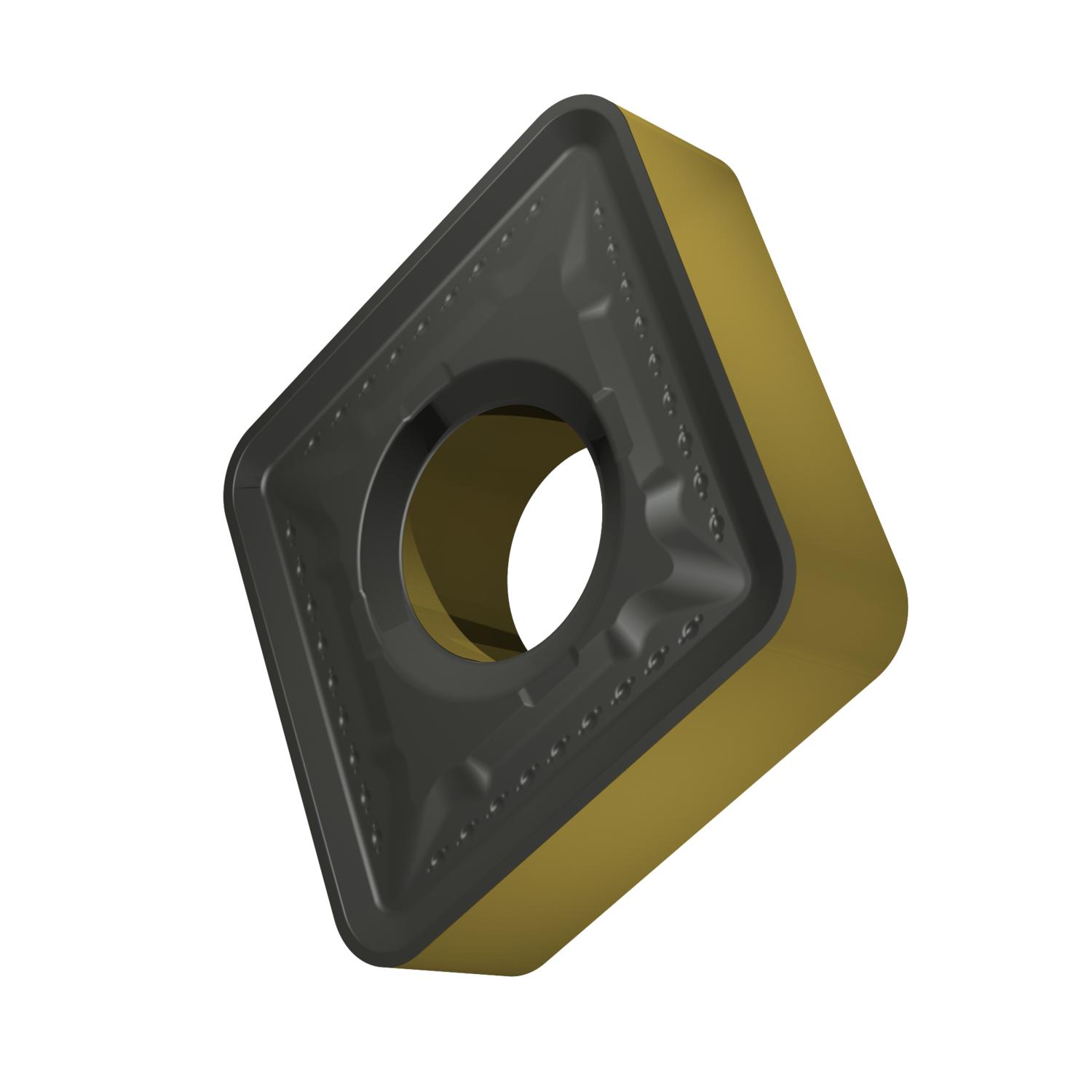

CNMM 646-HR2:T9415 TURNING INSERT
CNMM 646-HR2:T9415 TURNING INSERT
PRA8345540
8345540
25.31
/ EA
http://schema.org/OutOfStock
/Product/PRA8345540
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: HR2
- Corner Radius: 0.094in
- Hole Diameter: 0.313in
- Included Angle: 80°
- Inscribed Circle: 0.75in
- Insert Size: 19
- Insert Style: CNMM
- ISO Code: CNMM190624-HR2:T9415
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.118 to 0.512
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 1/4in
- ANSI Code: CNMM646-HR2:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.76in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For heavy to extra heavy machining of steels
ANSI Standards|ISO Standards|PROP65
