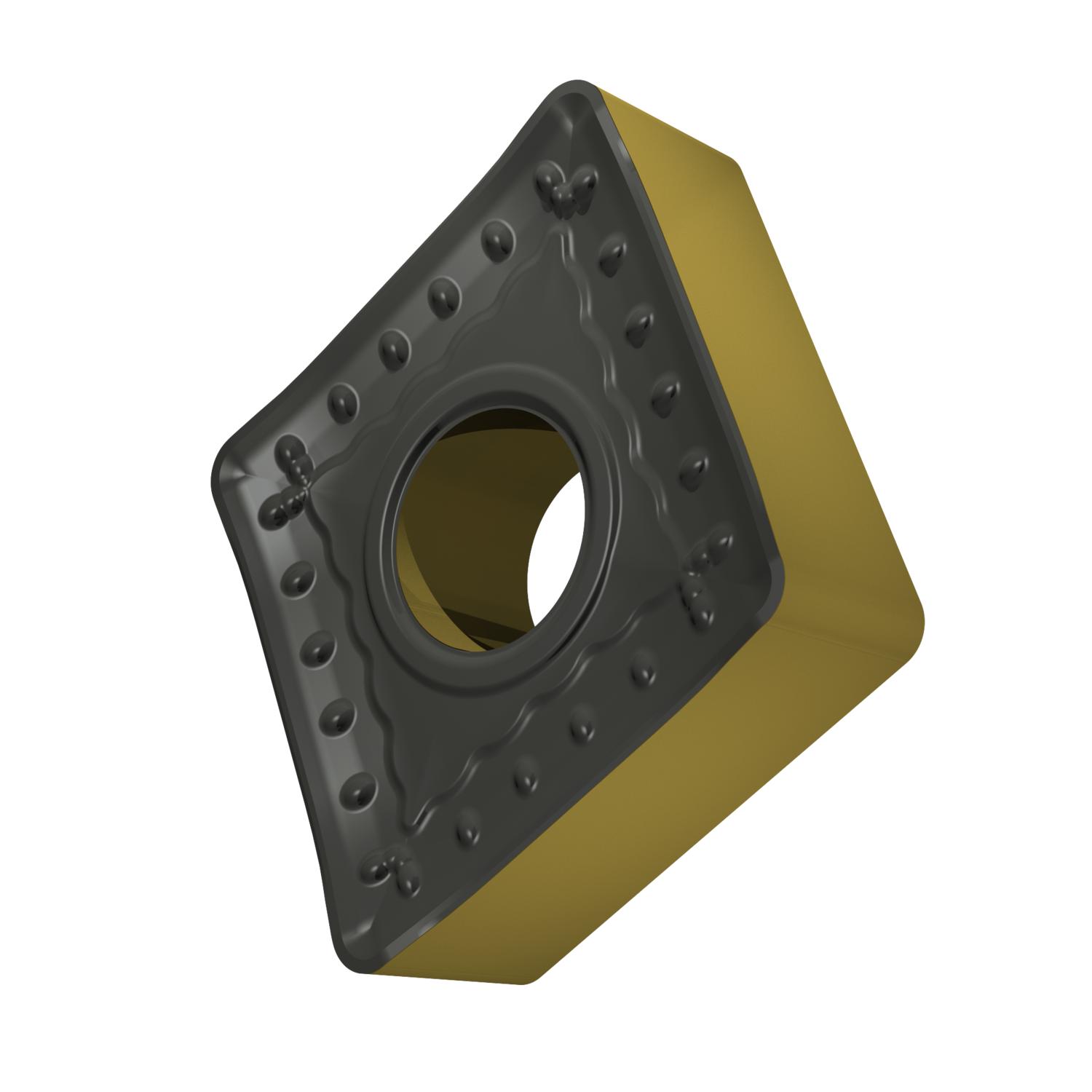

CNMM 543-OR:T9415 TURNING INSERT
CNMM 543-OR:T9415 TURNING INSERT
PRA8345536
8345536
18.66
/ EA
http://schema.org/OutOfStock
/Product/PRA8345536
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: OR
- Corner Radius: 0.047in
- Hole Diameter: 0.25in
- Included Angle: 80°
- Inscribed Circle: 0.625in
- Insert Size: 16
- Insert Style: CNMM
- ISO Code: CNMM160612E-OR:T9415
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.118 to 0.394
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 1/4in
- ANSI Code: CNMM543-OR:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.634in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to extra heavy machining of steels
ANSI Standards|ISO Standards|PROP65
