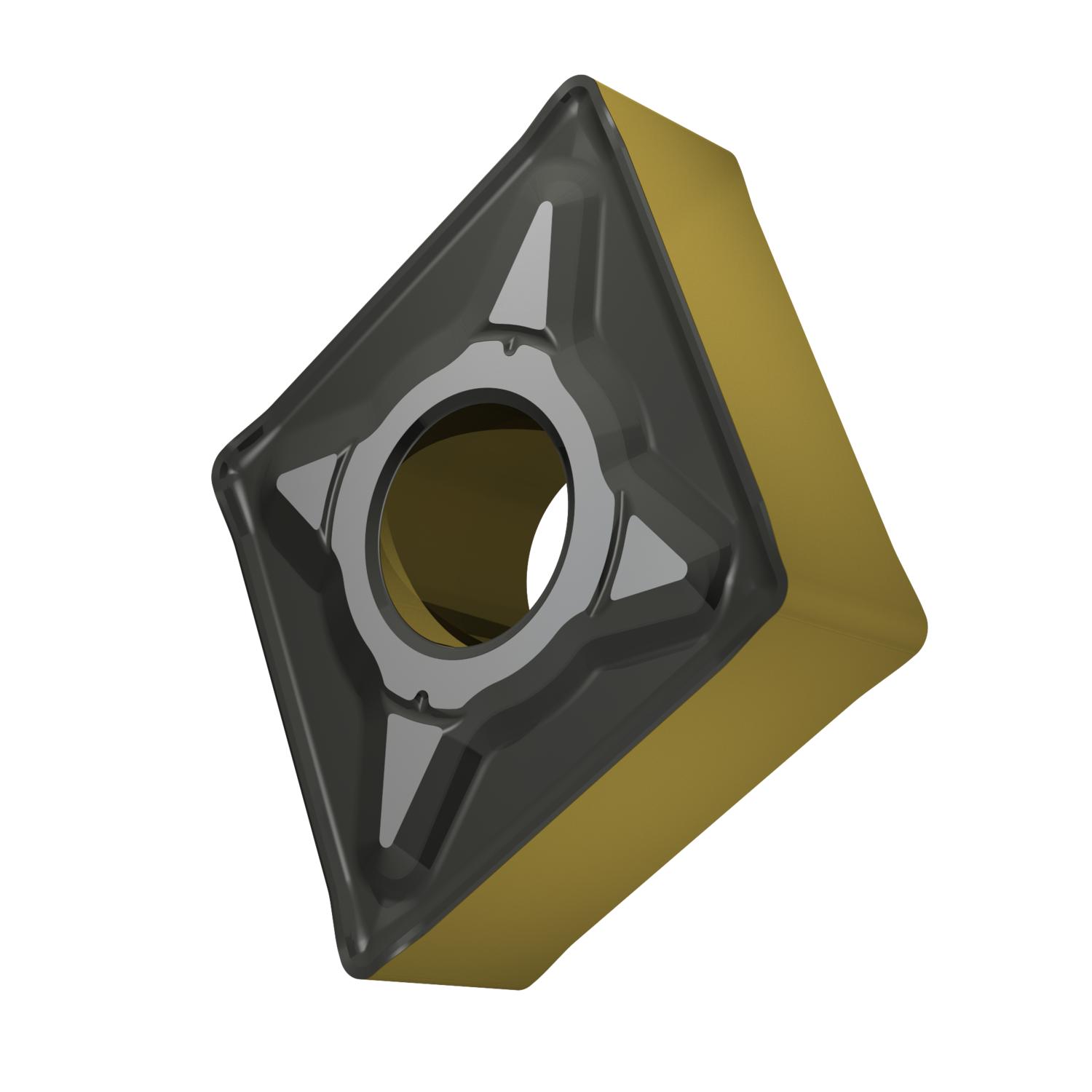

CNMG 542-NRM:T9415 TURNING INSERT
CNMG 542-NRM:T9415 TURNING INSERT
PRA8345521
8345521
18.66
/ EA
http://schema.org/OutOfStock
/Product/PRA8345521
- Applicable Materials: Steel and Cast Steel
- Chipbreaker: NRM
- Corner Radius: 0.031in
- Hole Diameter: 0.25in
- Included Angle: 80°
- Inscribed Circle: 5/8in
- Insert Size: 16
- Insert Style: CNMG
- ISO Code: CNMG160608-NRM:T9415
- Material Grade: P
- Maximum Depth of Cut Decimal Inch: 0.031 to 0.315
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 1/4in
- ANSI Code: CNMG542-NRM:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.634in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
