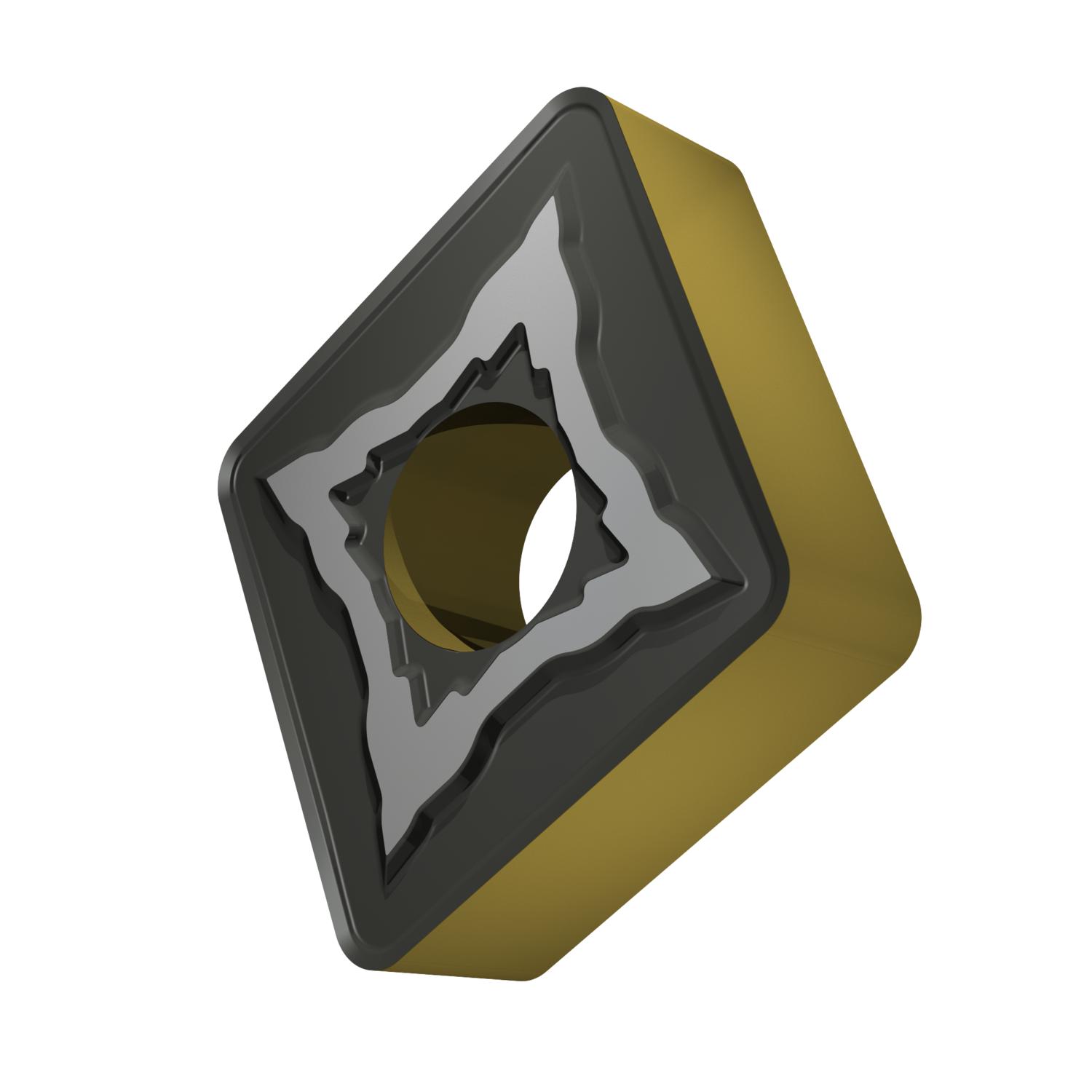

CNMG 433-NMR:T9415 TURNING INSERT
CNMG 433-NMR:T9415 TURNING INSERT
PRA8345519
8345519
10.46
/ EA
http://schema.org/OutOfStock
/Product/PRA8345519
- Applicable Materials: Steel and Cast Steel
- Chipbreaker: NMR
- Corner Radius: 0.047in
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 12
- Insert Style: CNMG
- ISO Code: CNMG120412E-NMR:T9415
- Material Grade: P
- Maximum Depth of Cut Decimal Inch: 0.047 to 0.217
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: MT-CVD Coated
- Thickness: 3/16in
- ANSI Code: CNMG433-NMR:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.508in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For fine to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
