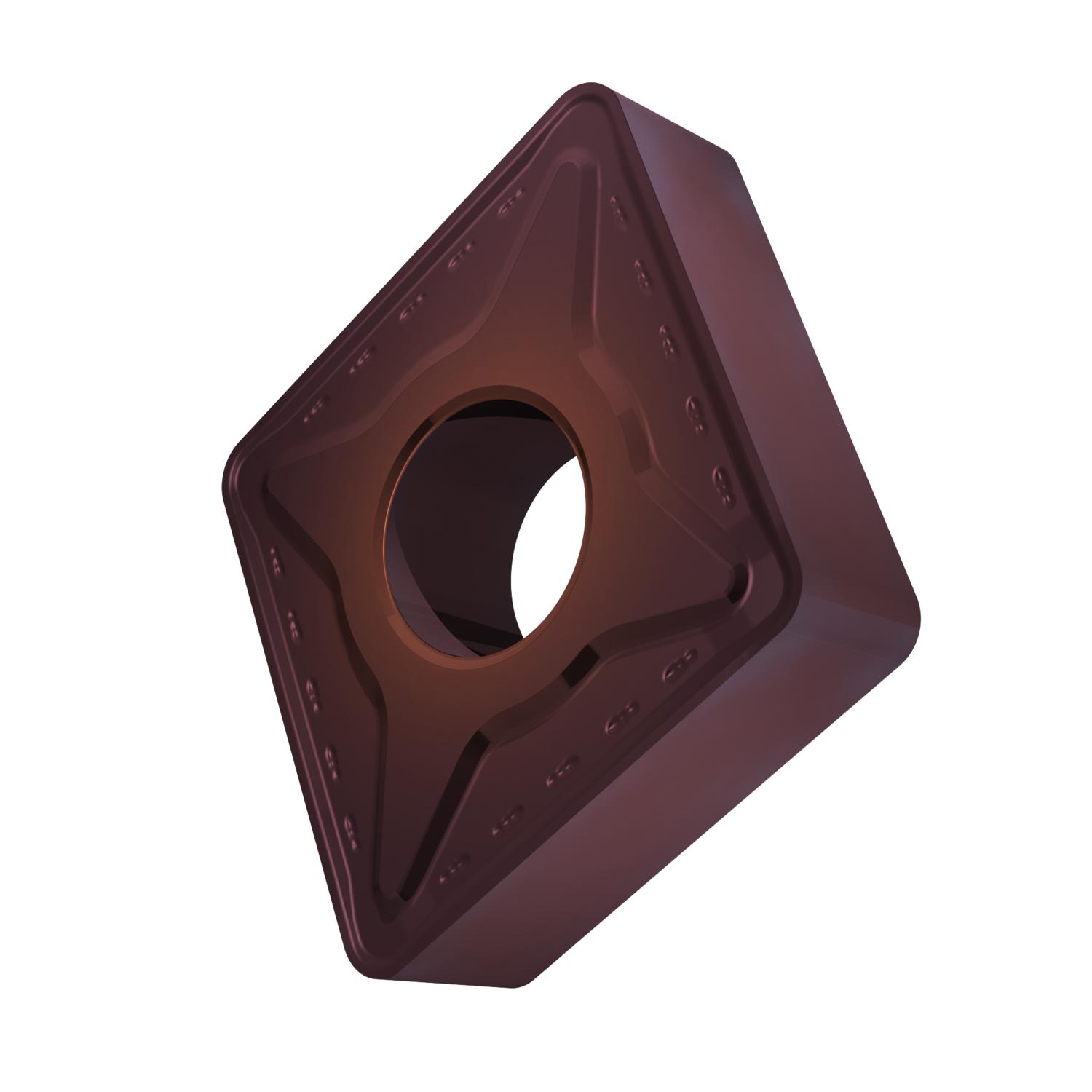

CNMG 644-RM:T8430 TURNING INSERT
CNMG 644-RM:T8430 TURNING INSERT
PRA8342370
8342370
22.59
/ EA
http://schema.org/OutOfStock
/Product/PRA8342370
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: RM
- Corner Radius: 0.063in
- Hole Diameter: 0.313in
- Included Angle: 80°
- Inscribed Circle: 0.75in
- Insert Size: 19
- Insert Style: CNMG
- ISO Code: CNMG190616E-RM:T8430
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.079 to 0.394
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: PVD Coated
- Thickness: 0.25in
- ANSI Code: CNMG644-RM:T8430
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.76in
- Manufacturer Grade: T8430
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
