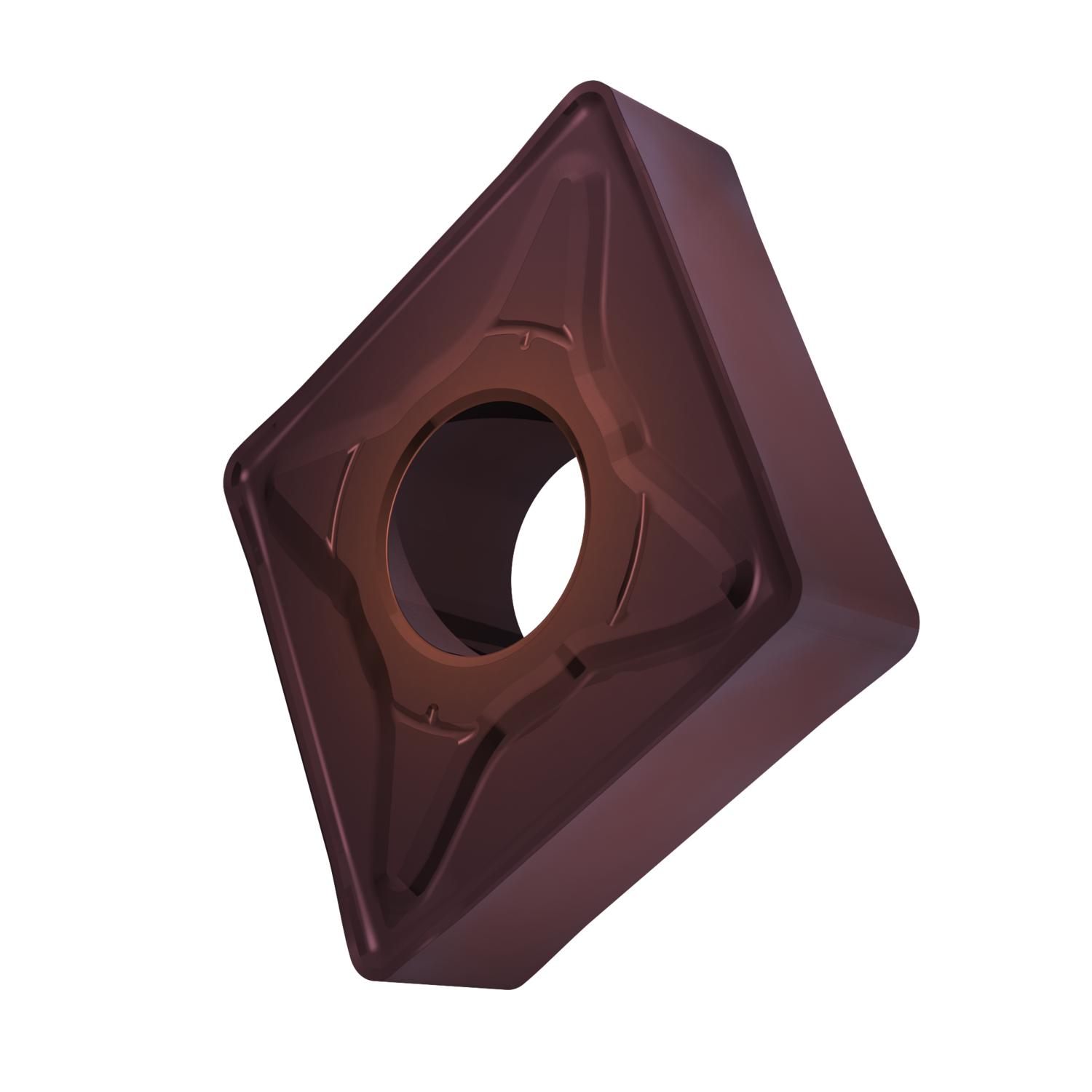

CNMG 643-NRM:T8430 TURNING INSERT
CNMG 643-NRM:T8430 TURNING INSERT
PRA8342347
8342347
22.59
/ EA
http://schema.org/OutOfStock
/Product/PRA8342347
- Applicable Materials: Stainless Steel/High-Temperature Alloys/Steel and Cast Steel
- Chipbreaker: NRM
- Corner Radius: 0.047in
- Hole Diameter: 0.313in
- Included Angle: 80°
- Inscribed Circle: 0.75in
- Insert Size: 19
- Insert Style: CNMG
- ISO Code: CNMG190612-NRM:T8430
- Material Grade: M/S/P
- Maximum Depth of Cut Decimal Inch: 0.047 to 0.394
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: PVD Coated
- Thickness: 0.25in
- ANSI Code: CNMG643-NRM:T8430
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.76in
- Manufacturer Grade: T8430
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
