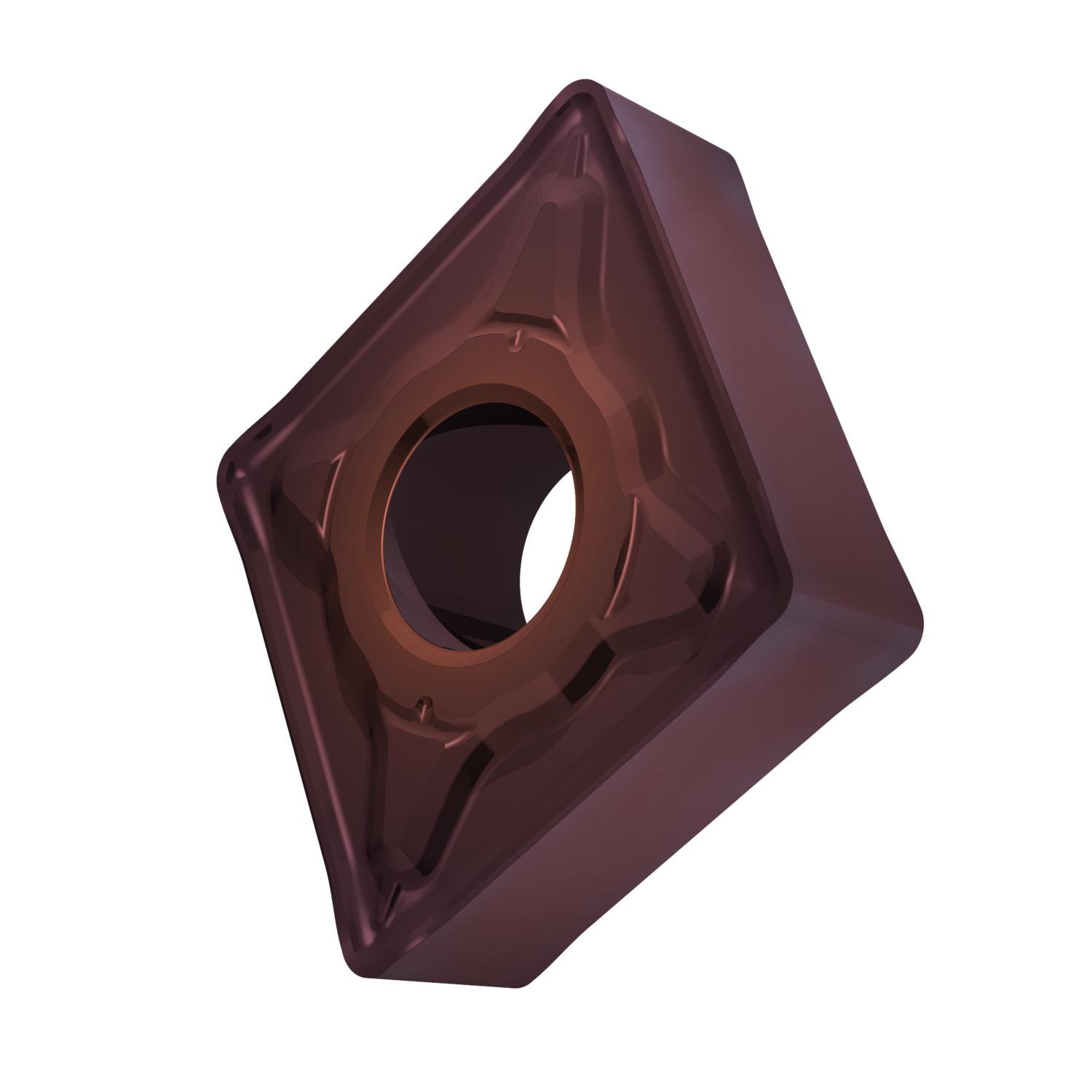

CNMG 432-NRM:T8430 TURNING INSERT
CNMG 432-NRM:T8430 TURNING INSERT
PRA8342343
8342343
10.46
/ EA
http://schema.org/OutOfStock
/Product/PRA8342343
- Applicable Materials: Stainless Steel/High-Temperature Alloys/Steel and Cast Steel
- Chipbreaker: NRM
- Corner Radius: 0.031in
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 0.5in
- Insert Size: 12
- Insert Style: CNMG
- ISO Code: CNMG120408-NRM:T8430
- Material Grade: M/S/P
- Maximum Depth of Cut Decimal Inch: 0.031 to 0.276
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: PVD Coated
- Thickness: 0.187in
- ANSI Code: CNMG432-NRM:T8430
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.508in
- Manufacturer Grade: T8430
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
