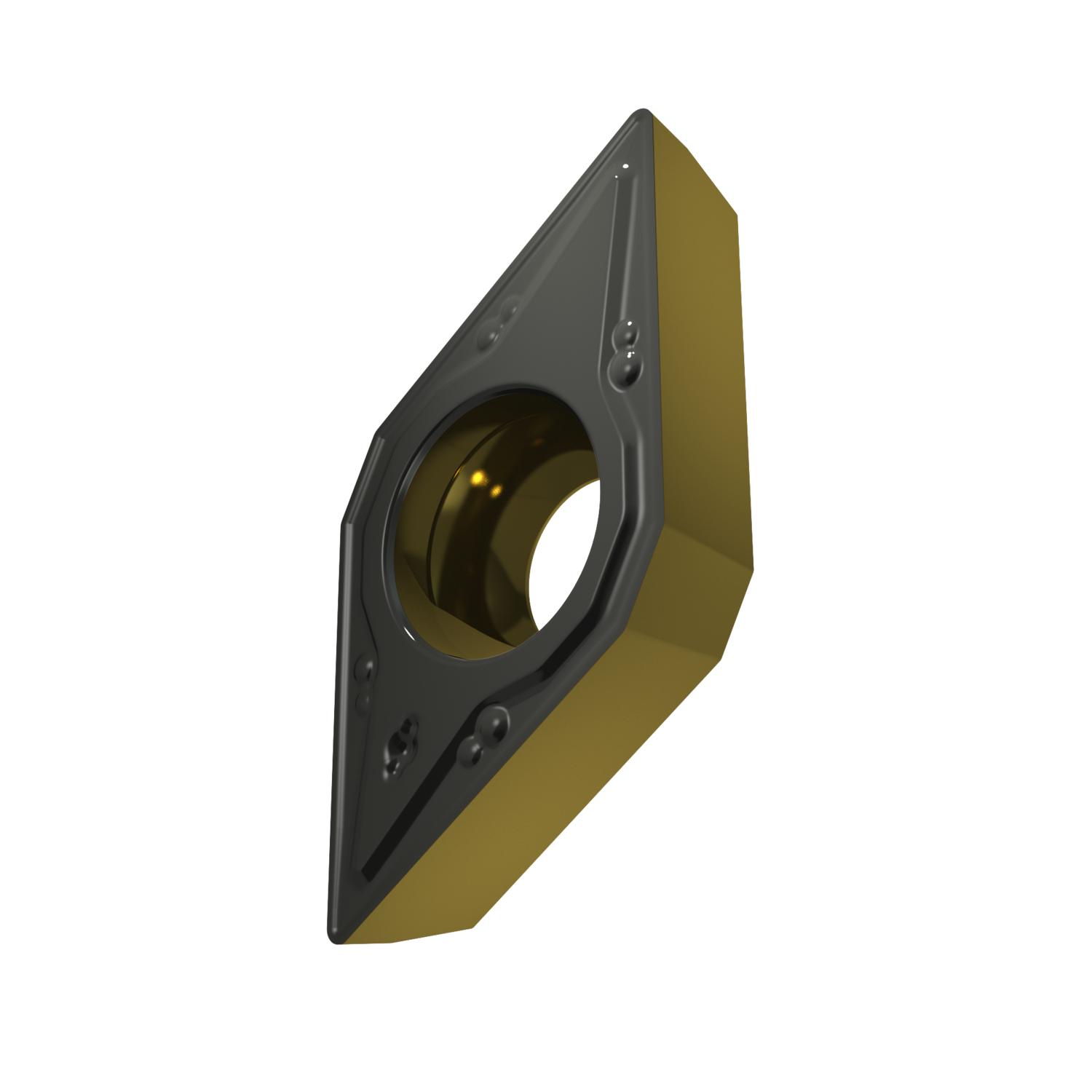

DCMT 32.51-RM:T9415 TURNING INSERT
DCMT 32.51-RM:T9415 TURNING INSERT
PRA8244366
8244366
11.00
/ EA
http://schema.org/OutOfStock
/Product/PRA8244366
- Applicable Materials: Steel and Cast Steel/Hardened Materials/Cast Iron
- Chipbreaker: RM
- Corner Radius: 0.016in
- Hole Diameter: 0.173in
- Included Angle: 55°
- Inscribed Circle: 0.375in
- Insert Size: 11
- Insert Style: DCMT
- ISO Code: DCMT11T304E-RM:T9415
- Material Grade: P/H/K
- Maximum Depth of Cut Decimal Inch: 0.031 to 0.13
- Rake: Positive
- Relief Angle: 7°
- Shape: Rhombic
- Surface Treatment: CVD Coated
- Thickness: 0.156in
- ANSI Code: DCMT32.51-RM:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.457in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Single
- Application
- Standards
For fine to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
