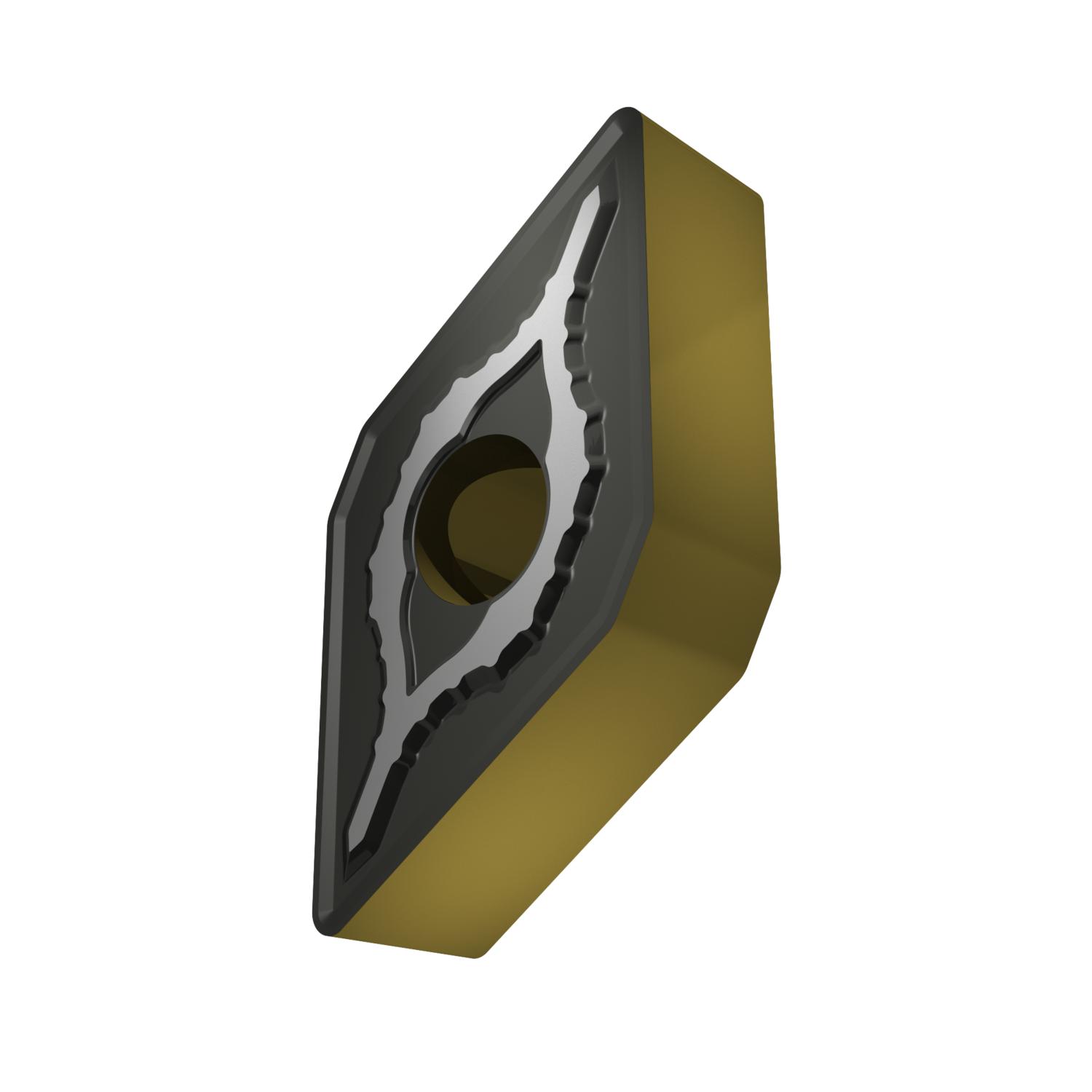

DNMG 442-SM:T9415 TURNING INSERT
DNMG 442-SM:T9415 TURNING INSERT
PRA8244275
8244275
16.14
/ EA
http://schema.org/OutOfStock
/Product/PRA8244275
- Applicable Materials: Steel and Cast Steel/Hardened Materials/Cast Iron
- Chipbreaker: SM
- Corner Radius: 0.031in
- Hole Diameter: 0.203in
- Included Angle: 55°
- Inscribed Circle: 0.5in
- Insert Size: 15
- Insert Style: DNMG
- ISO Code: DNMG150608E-SM:T9415
- Material Grade: P/H/K
- Maximum Depth of Cut Decimal Inch: 0.031 to 0.157
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: CVD Coated
- Thickness: 0.25in
- ANSI Code: DNMG442-SM:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.61in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For fine to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
