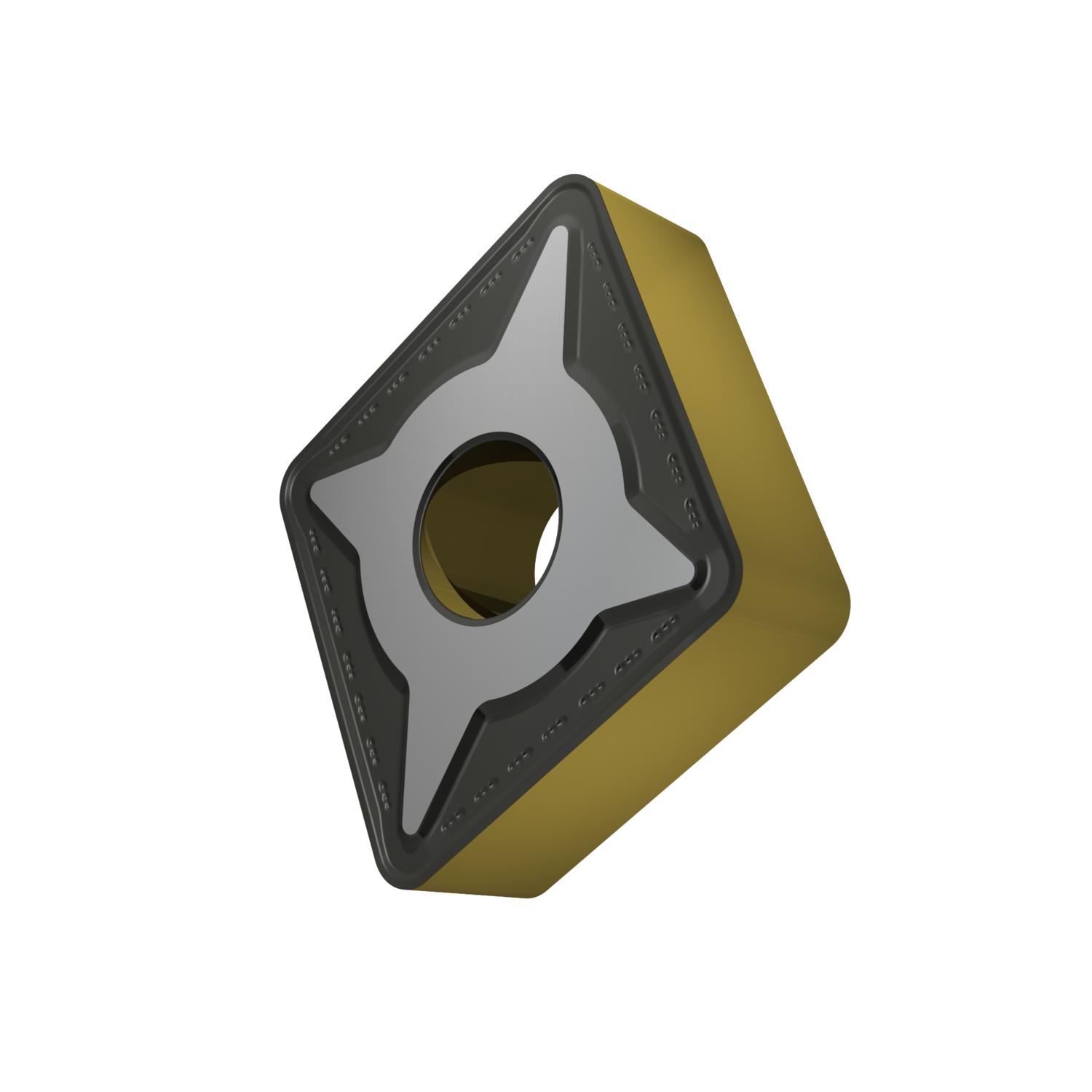

CNMG 866-RM:T9415 TURNING INSERT
CNMG 866-RM:T9415 TURNING INSERT
PRA8244258
8244258
46.19
/ EA
http://schema.org/OutOfStock
/Product/PRA8244258
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: RM
- Corner Radius: 0.094in
- Hole Diameter: 0.359in
- Included Angle: 80°
- Inscribed Circle: 1in
- Insert Size: 25
- Insert Style: CNMG
- ISO Code: CNMG250924E-RM:T9415
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.098 to 0.591
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: CVD Coated
- Thickness: 0.375in
- ANSI Code: CNMG866-RM:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 1.016in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For medium to heavy machining of steels
ANSI Standards|ISO Standards|PROP65
