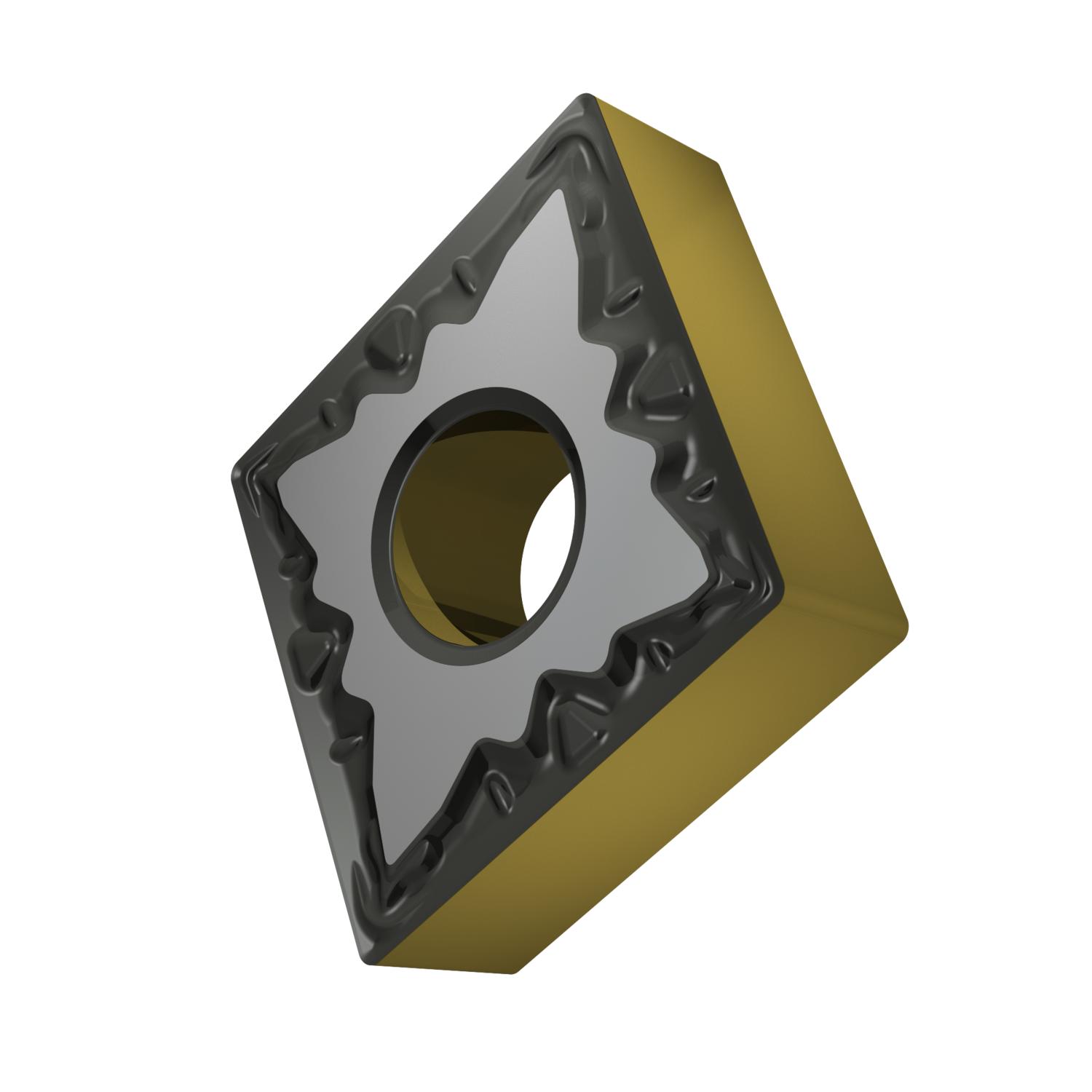

CNMG 431-FM:T9415 TURNING INSERT
CNMG 431-FM:T9415 TURNING INSERT
PRA8244148
8244148
10.46
/ EA
http://schema.org/OutOfStock
/Product/PRA8244148
- Applicable Materials: Steel and Cast Steel/Cast Iron
- Chipbreaker: FM
- Corner Radius: 0.016in
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 0.5in
- Insert Size: 12
- Insert Style: CNMG
- ISO Code: CNMG120404E-FM:T9415
- Material Grade: P/K
- Maximum Depth of Cut Decimal Inch: 0.02 to 0.118
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: CVD Coated
- Thickness: 0.187in
- ANSI Code: CNMG431-FM:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.508in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Single or Double End: Double
- Application
- Standards
For fine to medium machining of steels
ANSI Standards|ISO Standards|PROP65
