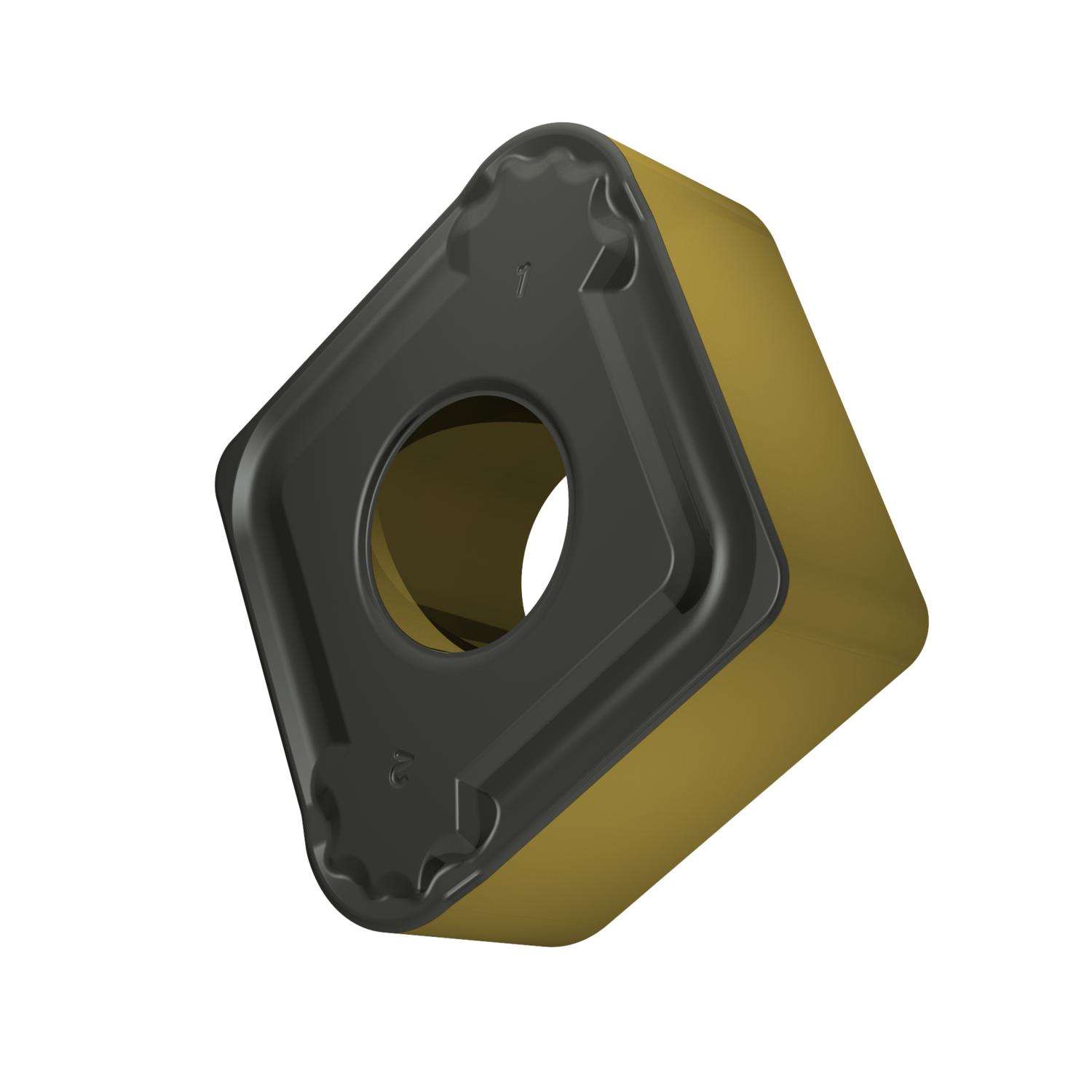

CNMX 190740SN-RF:T9415 TURNING INSERT
CNMX 190740SN-RF:T9415 TURNING INSERT
PRA8239161
8239161
29.24
/ EA
http://schema.org/OutOfStock
/Product/PRA8239161
- Applicable Materials: Steel and Cast Steel/Hardened Materials/Cast Iron
- Chipbreaker: RF
- Corner Radius: 0.157in
- Hole Diameter: 0.305in
- Included Angle: 80°
- Inscribed Circle: 0.75in
- Insert Size: 19
- Insert Style: CNMX
- ISO Code: CNMX190740SN-RF:T9415
- Material Grade: P/H/K
- Maximum Depth of Cut Decimal Inch: 0.157 to 0.236
- Relief Angle: 0°
- Shape: Rhombic
- Surface Treatment: CVD Coated
- Thickness: 0.313in
- Type: Heavy Duty
- ANSI Code: CNMX190740SN-RF:T9415
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Length: 0.76in
- Manufacturer Grade: T9415
- Manufacturer Name: Dormer Pramet
- Application
- Standards
For heavy to medium machining of steels
ANSI Standards|ISO Standards|PROP65
