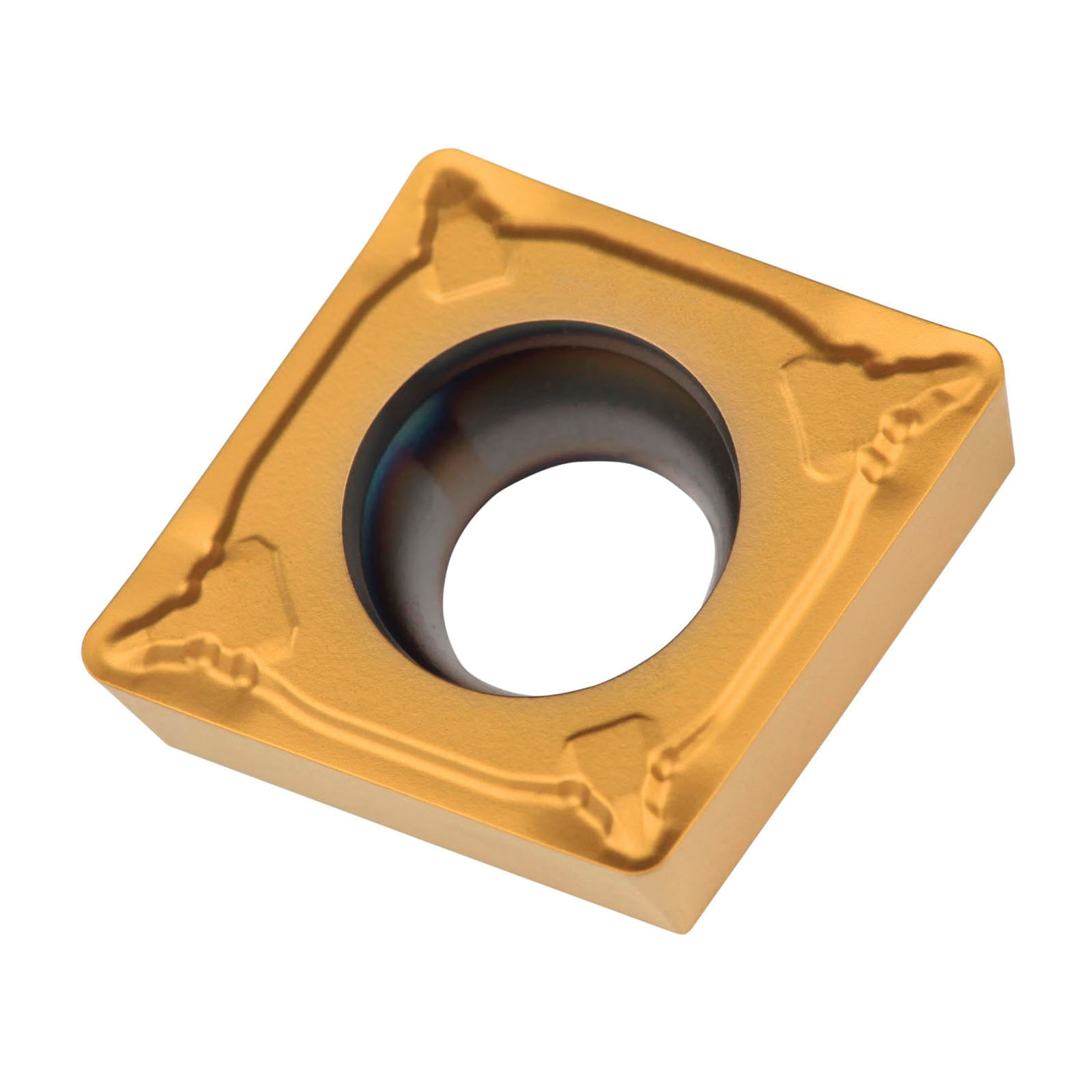

CCMT 32.50.5-UR:T6310 TURNING INSERT - POSITIVE
CCMT 32.50.5-UR:T6310 TURNING INSERT - POSITIVE
PRA7763056
7763056
8.59
/ EA
http://schema.org/OutOfStock
/Product/PRA7763056
- Chipbreaker: UR
- Corner Radius: 0.008in
- Hole Diameter: 0.173in
- Included Angle: 80°
- Inscribed Circle: 3/8in
- Insert Size: 32.5
- Insert Style: CCMT
- ISO Code: CCMT 09T302E-UR:T6310
- Maximum Depth of Cut Decimal Inch: 0.118
- Rake: Positive
- Relief Angle: 7°
- Shape: Rhombic
- Surface Treatment: PVD Coated
- Thickness: 0.156in
- Type: 0.382in
- ANSI Code: CCMT 32.50.5-UR:T6310
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T6310
- Manufacturer Name: Dormer Pramet
