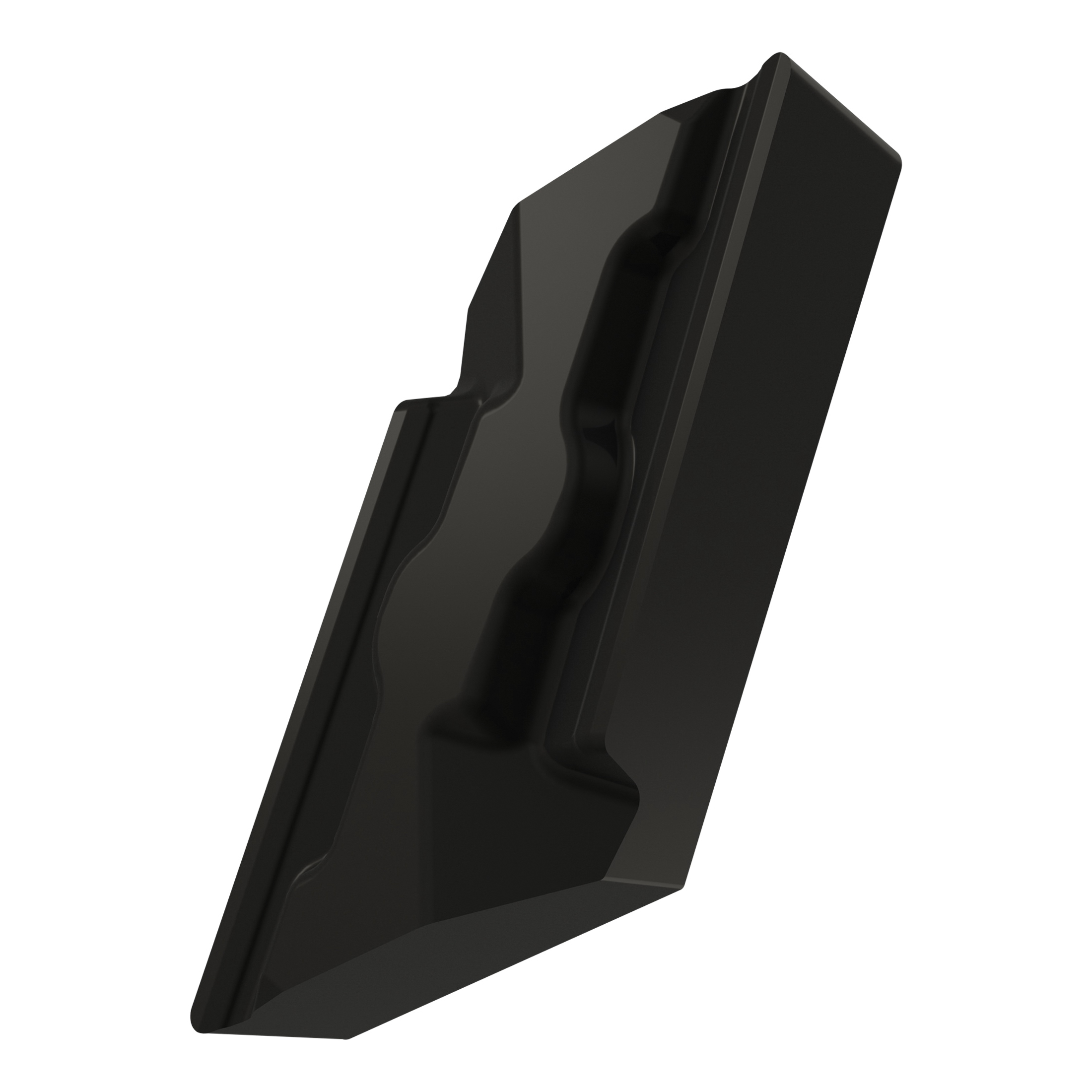

KNUX 160405L-22:T5315 TURNING INSERT - NEGATIVE
KNUX 160405L-22:T5315 TURNING INSERT - NEGATIVE
PRA7455426
7455426
11.20
/ EA
http://schema.org/OutOfStock
/Product/PRA7455426
- Applicable Materials: Cast Iron, Steel and Cast Steel
- Chipbreaker: 22
- Corner Radius: 0.5mm
- Hand Direction: Left Hand
- Included Angle: 55°
- Insert Size: 160405
- Insert Style: KNUX
- ISO Code: KNUX 160405L-22:T5315
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.189
- Maximum Depth of Cut Metric: 4.8
- Rake: Negative
- Relief Angle: 0°
- Shape: Parallelogram
- Surface Treatment: MT-CVD Coated
- Thickness: 4.76mm
- Type: Metric Special Design
- ANSI Code: KNUX 160405L-22:T5315
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T5315
- Width: 9.525mm
Special design negative turning insert, 55° parallelogram with a main edge length of 16mm, 4.76mm thick, 0.5mm nose radius and indexing accuracy according to ISO-tolerance class-U, chip-breaker 22, in grade T5315, a MT-CVD coated WC-Co carbide within ISO range K10-K25, for medium to heavy machining of cast-irons with a left handed turning tool
- Item Features
- Standards
- Positive effect on tool life - cooling is recommended
- External cooling supply
