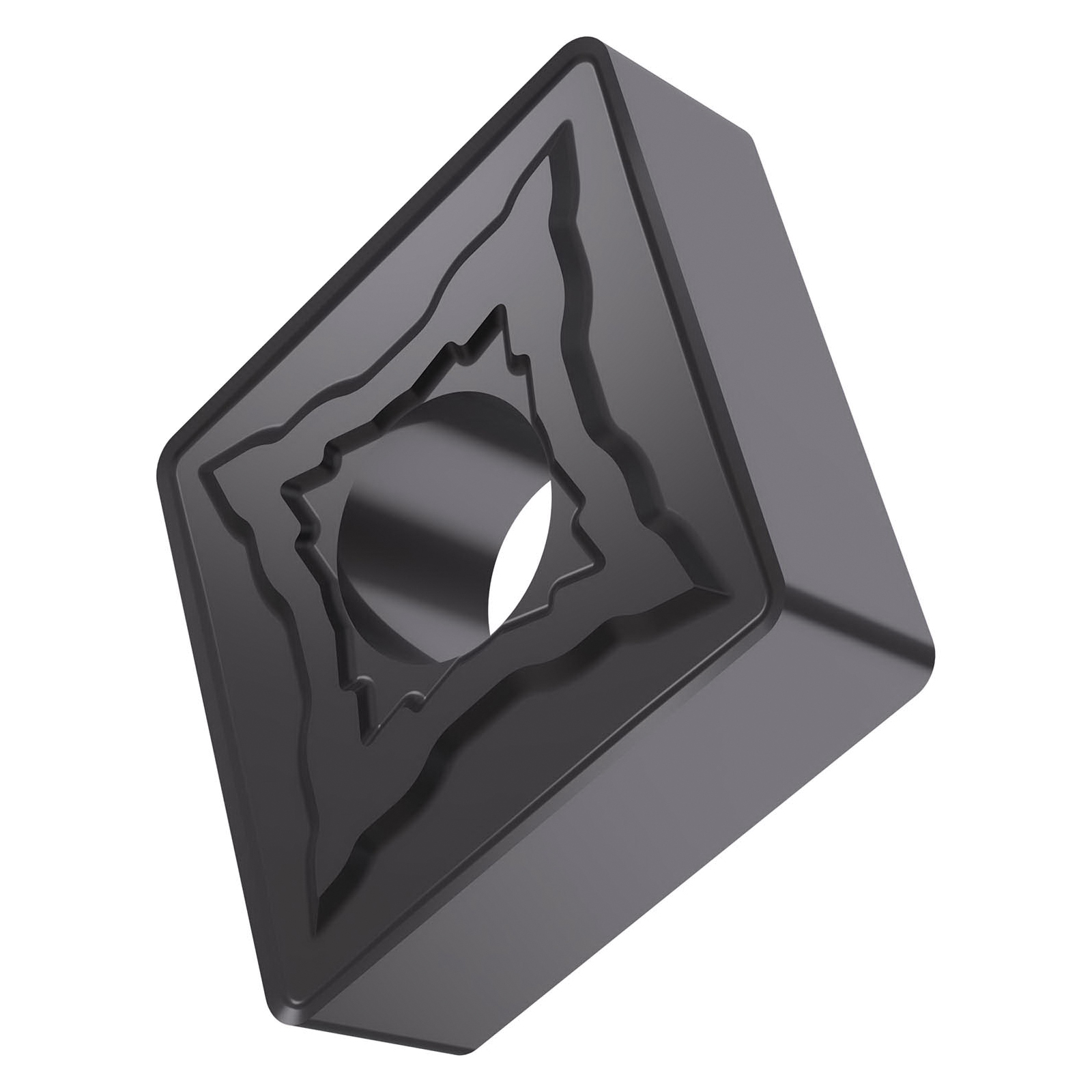

CNMG 432-NMR:T6310 TURNING INSERT - NEGATIVE
CNMG 432-NMR:T6310 TURNING INSERT - NEGATIVE
PRA7454461
7454461
10.14
/ EA
http://schema.org/OutOfStock
/Product/PRA7454461
- Applicable Materials: Stainless Steel, High Temperature Alloys, Steel and Cast Steel
- Chipbreaker: NMR
- Corner Radius: 0.8mm
- Hole Diameter: 5.16mm
- Included Angle: 80°
- Inscribed Circle: 12.7mm
- Insert Size: 120408
- Insert Style: CNMG
- ISO Code: CNMG 120408E-NMR:T6310
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.197
- Maximum Depth of Cut Metric: 5.0
- Rake: Negative
- Relief Angle: 0°
- Shape: Rhomboid
- Surface Treatment: PVD Coated
- Thickness: 4.76mm
- Type: Double Sided Metric
- ANSI Code: CNMG 432-NMR:T6310
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T6310
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NMR with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO range M01-M15, for fine to heavy machining of stainless-steels
- Item Features
- Standards
- Positive effect on tool life - cooling is recommended
- External cooling supply
