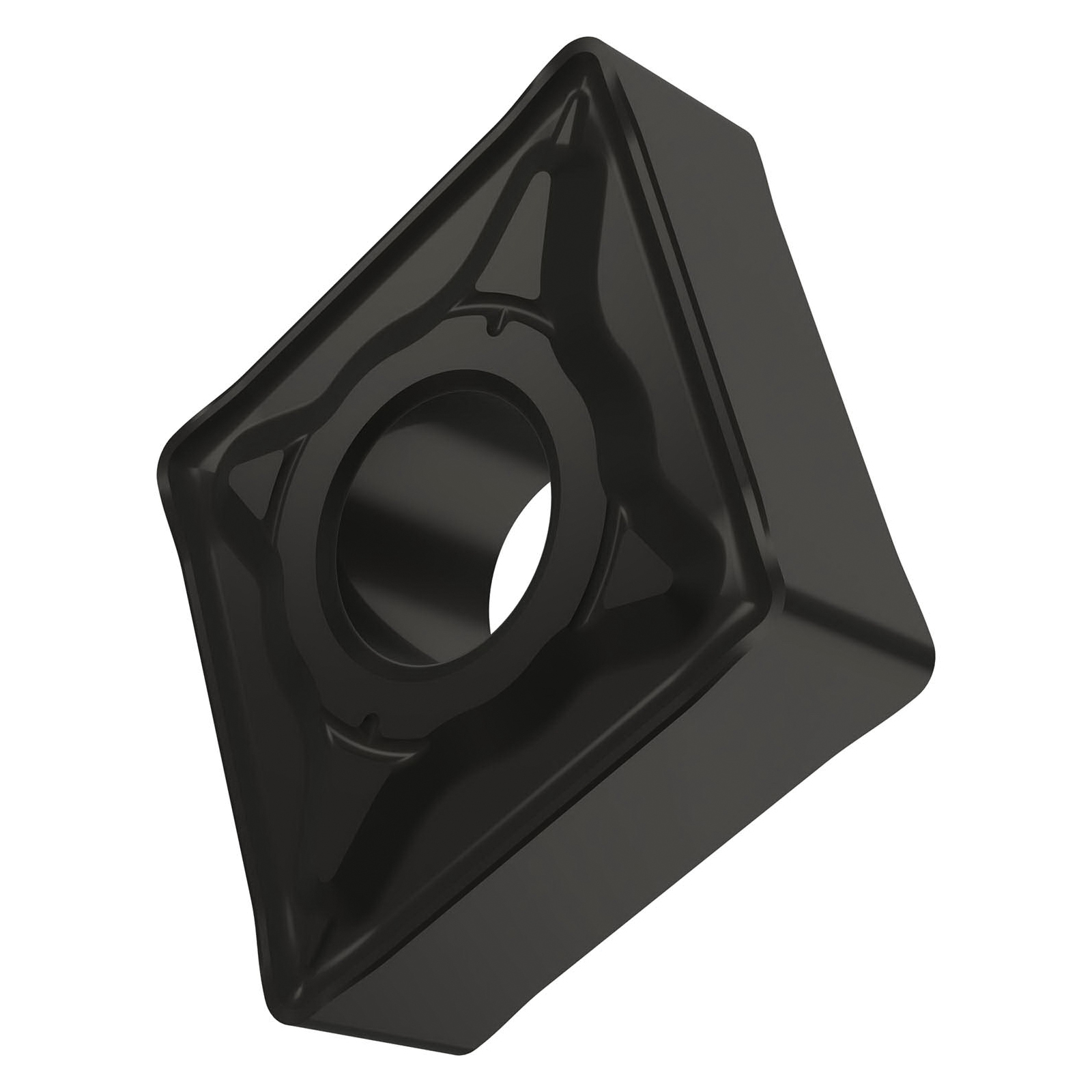

CNMG 432-NRM:T7325 TURNING INSERT - NEGATIVE
CNMG 432-NRM:T7325 TURNING INSERT - NEGATIVE
PRA7273473
7273473
10.14
/ EA
http://schema.org/OutOfStock
/Product/PRA7273473
- Applicable Materials: Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: NRM
- Corner Radius: 0.031in
- Hole Diameter: 0.203in
- Included Angle: 80°
- Inscribed Circle: 1/2in
- Insert Size: 432
- Insert Style: CNMG
- ISO Code: CNMG 120408-NRM:T7325
- Material: Carbide
- Material Grade: M, P, S
- Maximum Depth of Cut Decimal Inch: 0.276
- Rake: Negative
- Relief Angle: 0°
- Seat Size: 12
- Shape: Diamond
- Surface Treatment: MT-CVD Coated
- Thickness: 0.187in
- Type: 0.508in
- ANSI Code: CNMG 432-NRM:T7325
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T7325
- Manufacturer Name: Dormer Pramet
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius and indexing accuracy according to ISO-tolerance class-M, chip-breaker NRM, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for medium to heavy machining of stainless-steels
- Item Features
- Standards
- T7325 grade first choice and most versatile grade for turning stainless steels
- It has been developed to complement the existing T7335 grade
- Functional gradient substrate
- Special coating MT-CVD with textured alpha Al2O3
- High cutting edge strength
- Resistance to formation of cracks
- Versatility
- High performance and tool life
- Increased operational reliability
- Reduced built-up edge
- Suitable for interrupted cut and difficult to machine materials
