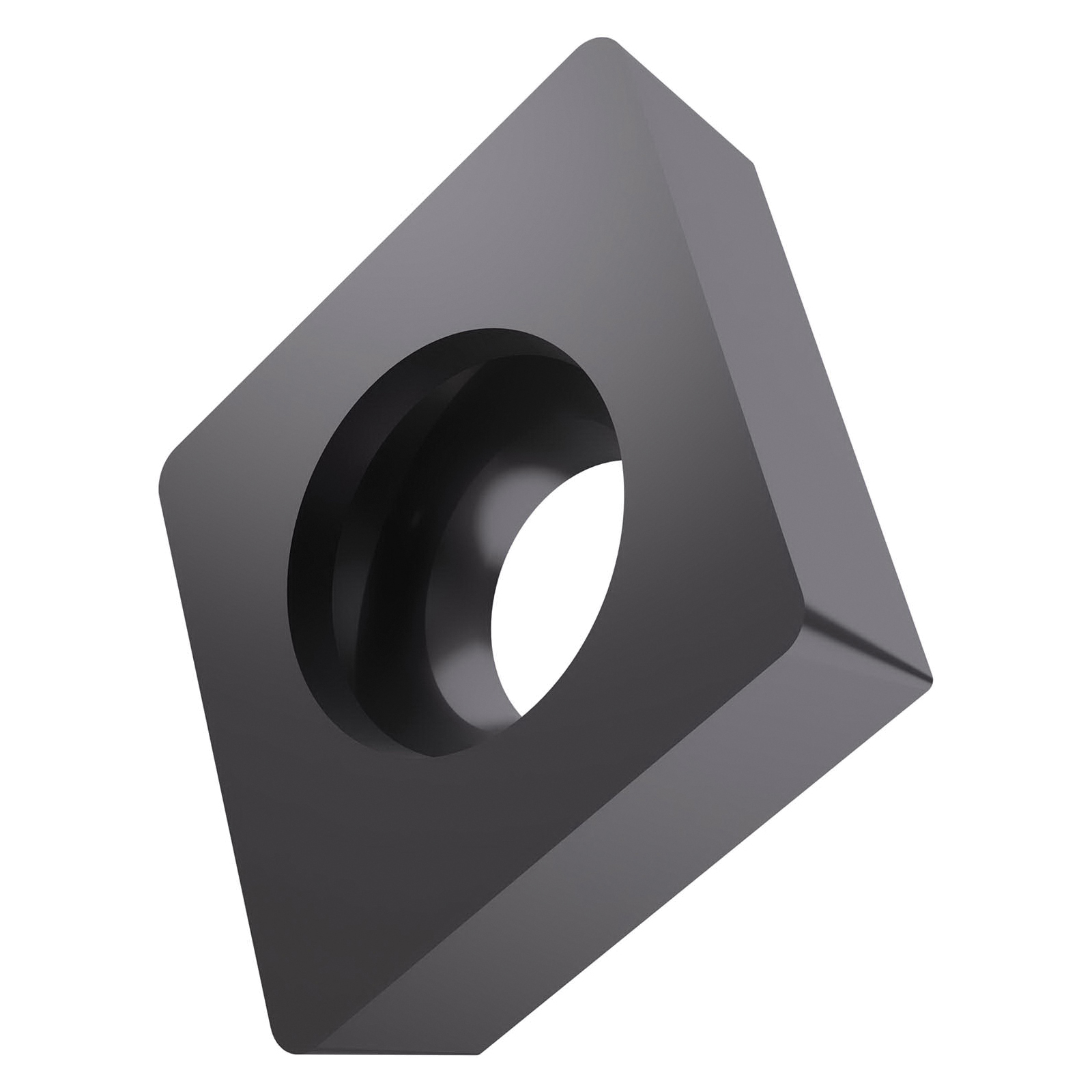

CCMW 21.51:T6310 TURNING INSERT - POSITIVE
CCMW 21.51:T6310 TURNING INSERT - POSITIVE
PRA7168644
7168644
7.06
/ EA
http://schema.org/OutOfStock
/Product/PRA7168644
- Applicable Materials: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys
- Corner Radius: 0.4mm
- Hole Diameter: 2.8mm
- Included Angle: 80°
- Inscribed Circle: 6.35mm
- Insert Size: 21.51
- Insert Style: CCMW
- ISO Code: CCMW 060204:T6310
- Material: Carbide
- Material Grade: H, K, M, N, P, S
- Maximum Depth of Cut Decimal Inch: 0.165
- Maximum Depth of Cut Metric: 4.2
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: PVD-TiAlN+AlTiSiN Coated
- Thickness: 2.38mm
- Type: 6.4mm
- ANSI Code: CCMW 21.51:T6310
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T6310
- Manufacturer Name: Dormer Pramet
Single-sided positive turning insert, 80° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.4mm nose radius and indexing accuracy according to ISO-tolerance class-M, in grade T6310, a PVD coated extra fine grained WC-Co carbide, for fine to medium machining
- Application
- Item Features
- Standards
Fine Finishing and Semi-Roughing
- T6310 grade high reliability due to special new sintering process
- High wear resistance (new substrate with high strength and hardness)
- PVD coating using triple coating technology, multilayer TiAlN + top layer AlTiSiN with high hardness
- High strength and reliability of the insert during continuous cut
- Excellent durability of the inserts for higher cutting speeds
- Resistance to heat related cracks
