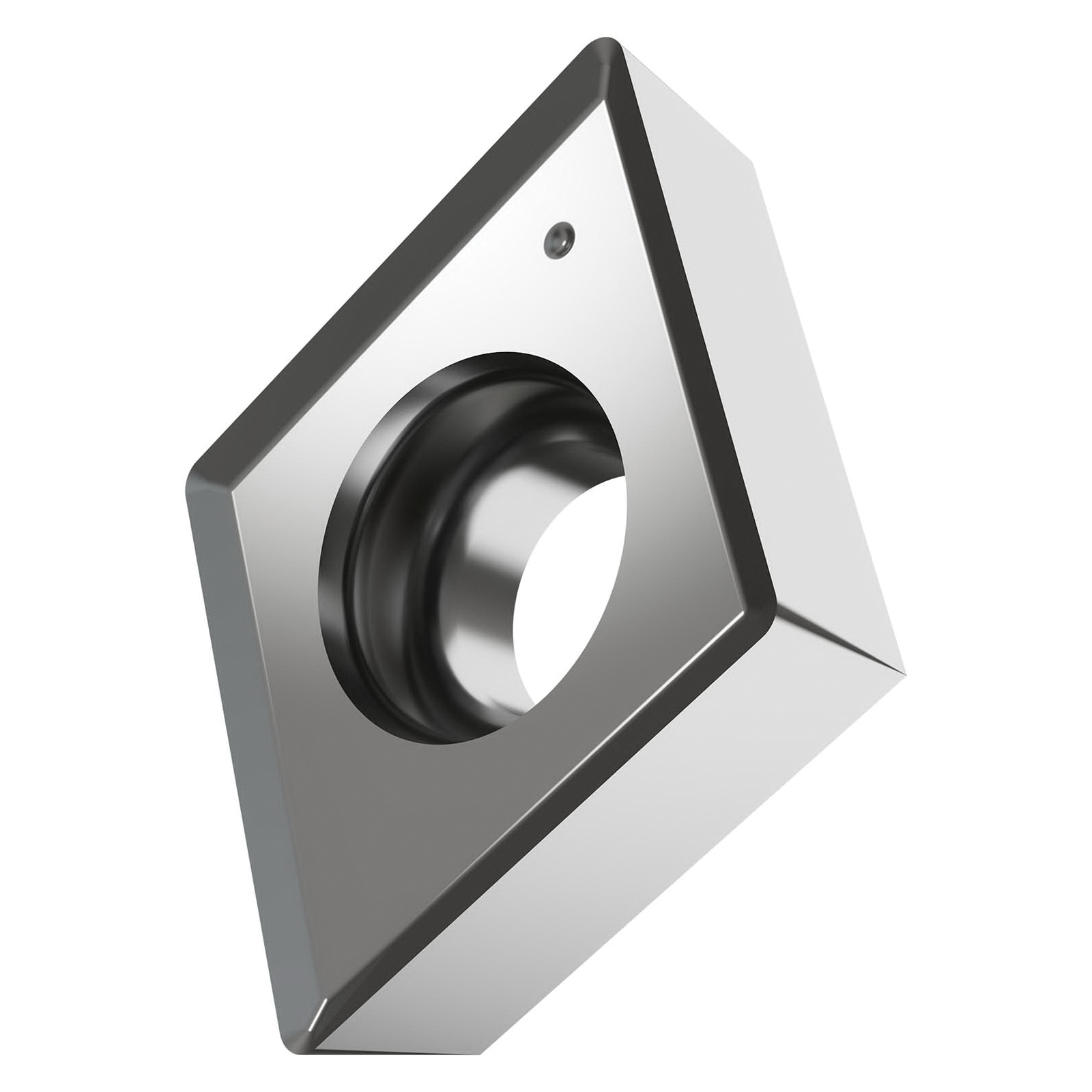

ECGT 2.520.5-SF2:H07 TURNING INSERT - POSITIVE
ECGT 2.520.5-SF2:H07 TURNING INSERT - POSITIVE
PRA7168492
7168492
9.56
/ EA
http://schema.org/OutOfStock
/Product/PRA7168492
- Applicable Materials: Aluminum, Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: SF2
- Corner Radius: 0.2mm
- Included Angle: 75°
- Inscribed Circle: 5/16in
- Insert Size: 2.520.5
- Insert Style: ECGT
- ISO Code: ECGT 080302E-SF2 H07
- Material: Carbide
- Material Grade: K, M, N, P, S
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 8
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 1/8in
- ANSI Code: ECGT 2.520.5-SF2 H07
- Country of Origin: CZ
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: H07
- Manufacturer Name: Dormer Pramet
Single-sided positive turning insert, 75° rhomboid with 7° clearance, inscribed circle diameter of 7.94mm, 3.18mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF2 with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO range S01-S20, for fine to medium machining of super-alloys
- Item Features
- Standards
- H07 grade special uncoated material for turning titanium and its alloys
- Fine grain substrate with low cobalt content
- High abrasion resistance
- Resistance to pitting on the cutting face when machining titanium and its alloys
- Resistance to plastic deformation
- Also suitable for the machining of non-ferrous metals and cast iron
- H type fine grain material (without cubic carbides) with low cobalt bonding phase content
- Special grade for machining titanium alloys
- Small to medium cross sections of chip
- Suitable for continuous to slightly interrupted cut
