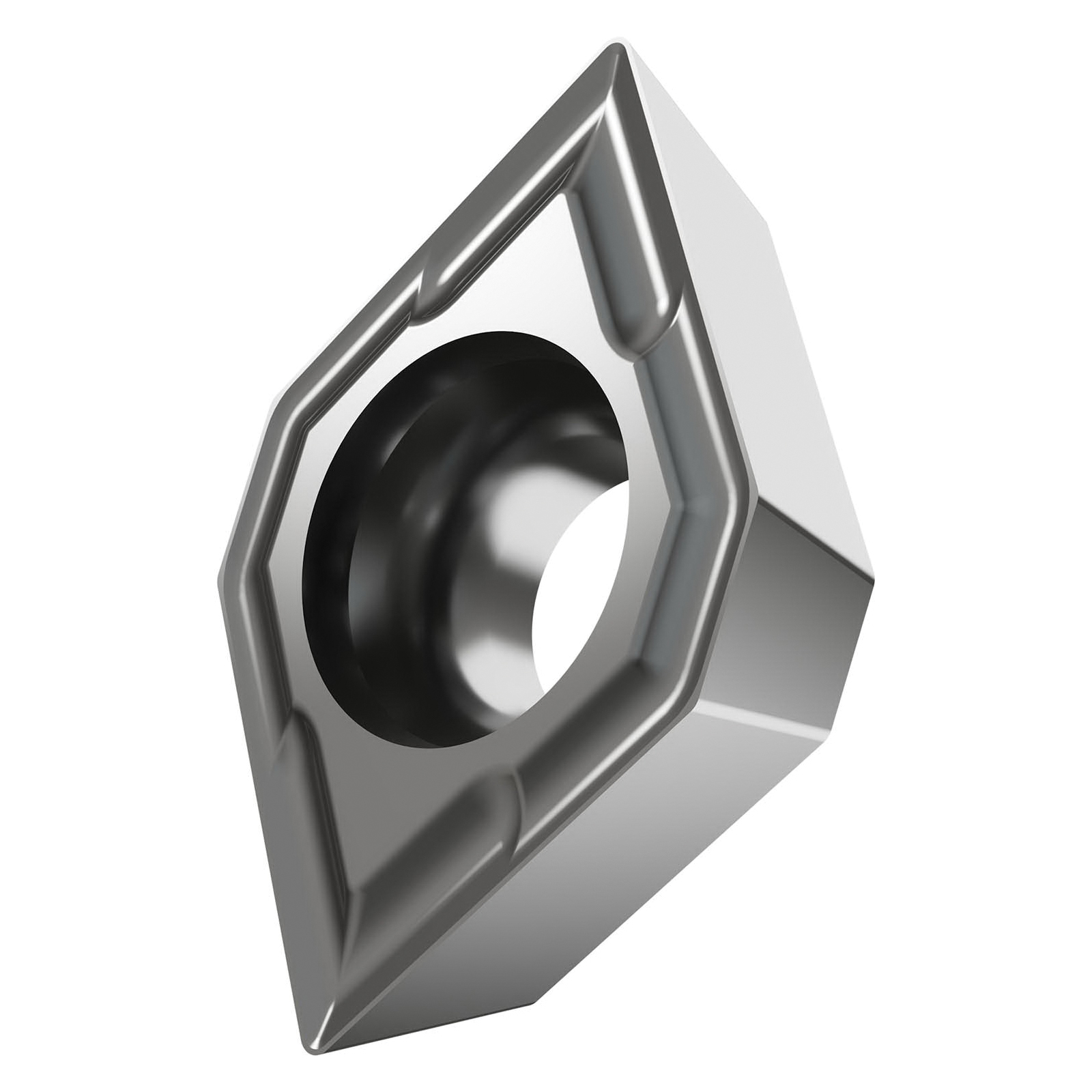

EPMT 1.81.50.5-NF2:H07 TURNING INSERT - POSITIVE
EPMT 1.81.50.5-NF2:H07 TURNING INSERT - POSITIVE
PRA7167482
7167482
4.97
/ EA
http://schema.org/OutOfStock
/Product/PRA7167482
- Applicable Materials: Aluminum, Cast Iron, Stainless Steel and Titanium/Super Alloy
- Chipbreaker: NF2
- Corner Radius: 0.2mm
- Hole Diameter: 2.5mm
- Included Angle: 75°
- Inscribed Circle: 5.56mm
- Insert Size: 1.81.50.5
- Insert Style: EPMT
- ISO Code: EPMT 050202E-NF2 H07
- Material: Carbide
- Material Grade: K, M, N, S
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 5
- Shape: Diamond
- Surface Treatment: UNCOATED
- Thickness: 2.38mm
- Type: 5.7mm
- ANSI Code: EPMT 1.81.50.5-NF2 H07
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: H07
Single-sided positive turning insert, 75° rhomboid with 11° clearance, inscribed circle diameter of 5.56mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO range S01-S20, for fine to medium machining of super-alloys
- Application
- Item Features
- Standards
Semi-Finishing and Light Roughing
- H07 grade special uncoated material for turning titanium and its alloys
- Fine grain substrate with low cobalt content
- High abrasion resistance
- Resistance to pitting on the cutting face when machining titanium and its alloys
- Resistance to plastic deformation
- Also suitable for the machining of non-ferrous metals and cast iron
- H type fine grain material (without cubic carbides) with low cobalt bonding phase content
- Special grade for machining titanium alloys
- Small to medium cross sections of chip
- Suitable for continuous to slightly interrupted cut
