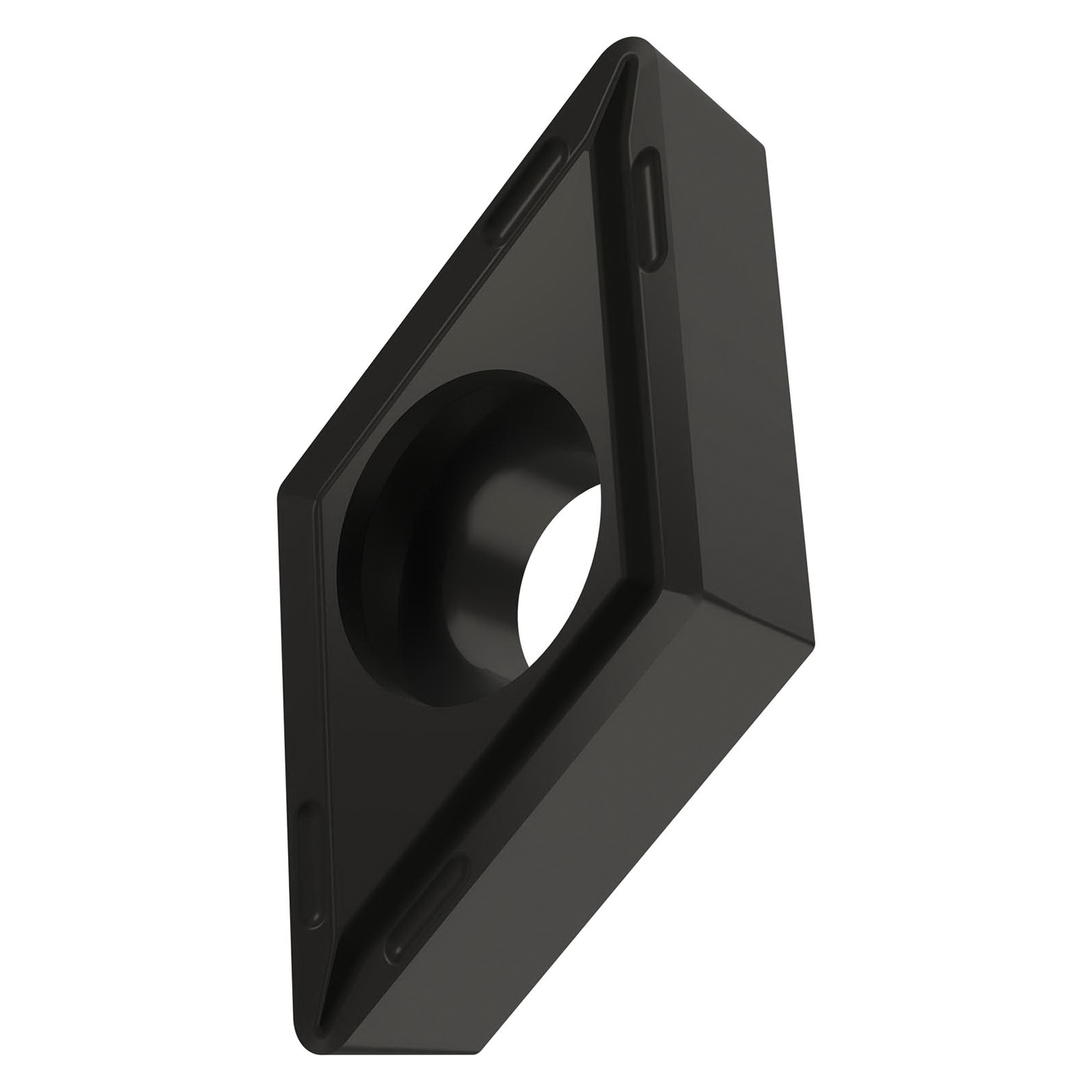

DCMT 21.50.5-FF2:T7325 TURNING INSERT - POSITIVE
DCMT 21.50.5-FF2:T7325 TURNING INSERT - POSITIVE
PRA7156728
7156728
6.27
/ EA
http://schema.org/OutOfStock
/Product/PRA7156728
- Chipbreaker: FF2
- Corner Radius: 0.2mm
- Hole Diameter: 0.114in
- Included Angle: 55°
- Inscribed Circle: 1/4in
- Insert Size: 21.50.5
- Insert Style: DCMT
- ISO Code: DCMT 070202E-FF2
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.059
- Maximum Depth of Cut Metric: 1.5
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 7
- Shape: Diamond
- Thickness: 3/32in
- Type: 0.307in
- ANSI Code: DCMT 070202E-FF2:T7325
- Has Attributes: Yes
- Has Image: Yes
Single-sided positive turning insert, 55 deg rhomboid with 7 deg clearance, inscribed circle diameter of 6.35 mm, 2.38 mm THK, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining.
- Application
- Standards
Fine and Finishing Turning
