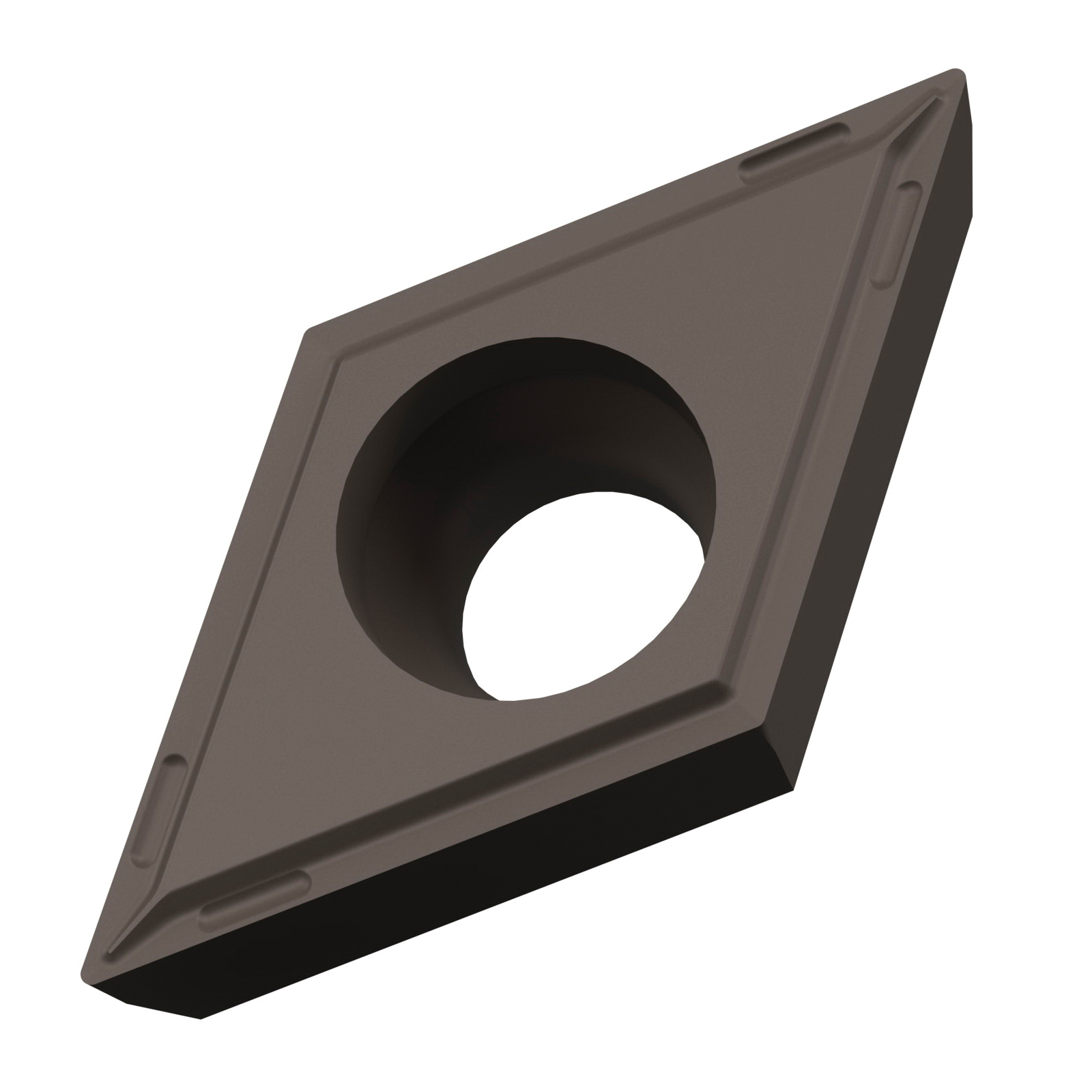

DCGT 32.50.5-FF2:T9325 TURNING INSERT - POSITIVE
DCGT 32.50.5-FF2:T9325 TURNING INSERT - POSITIVE
PRA7156727
7156727
16.60
/ EA
http://schema.org/OutOfStock
/Product/PRA7156727
- Applicable Materials: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
- Chipbreaker: FF2
- Corner Radius: 0.2mm
- Hole Diameter: 0.177in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 32.50.5
- Insert Style: DCGT
- ISO Code: DCGT 11T302E-FF2 T9325
- Material: Carbide
- Material Grade: K, M, P, S
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Diamond
- Surface Treatment: CVD Coated
- Thickness: 5/32in
- Type: 0.457in
- ANSI Code: DCGT 32.50.5-FF2 T9325
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T9325
Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to medium machining of steels
- Application
- Item Features
- Standards
Fine and Finishing Turning
- T9325 grade functionally gradient substrate
- Relatively low content of cobalt binder phase
- Highly versatile material with very good operational reliability
- Special surface finish for coating
- Medium and higher cutting speed
- Continuous and interrupted cut
- Unfavorable cutting conditions, continuous and/or interrupted cuts
- Cutting geometry suitable for grooving and axial turning
