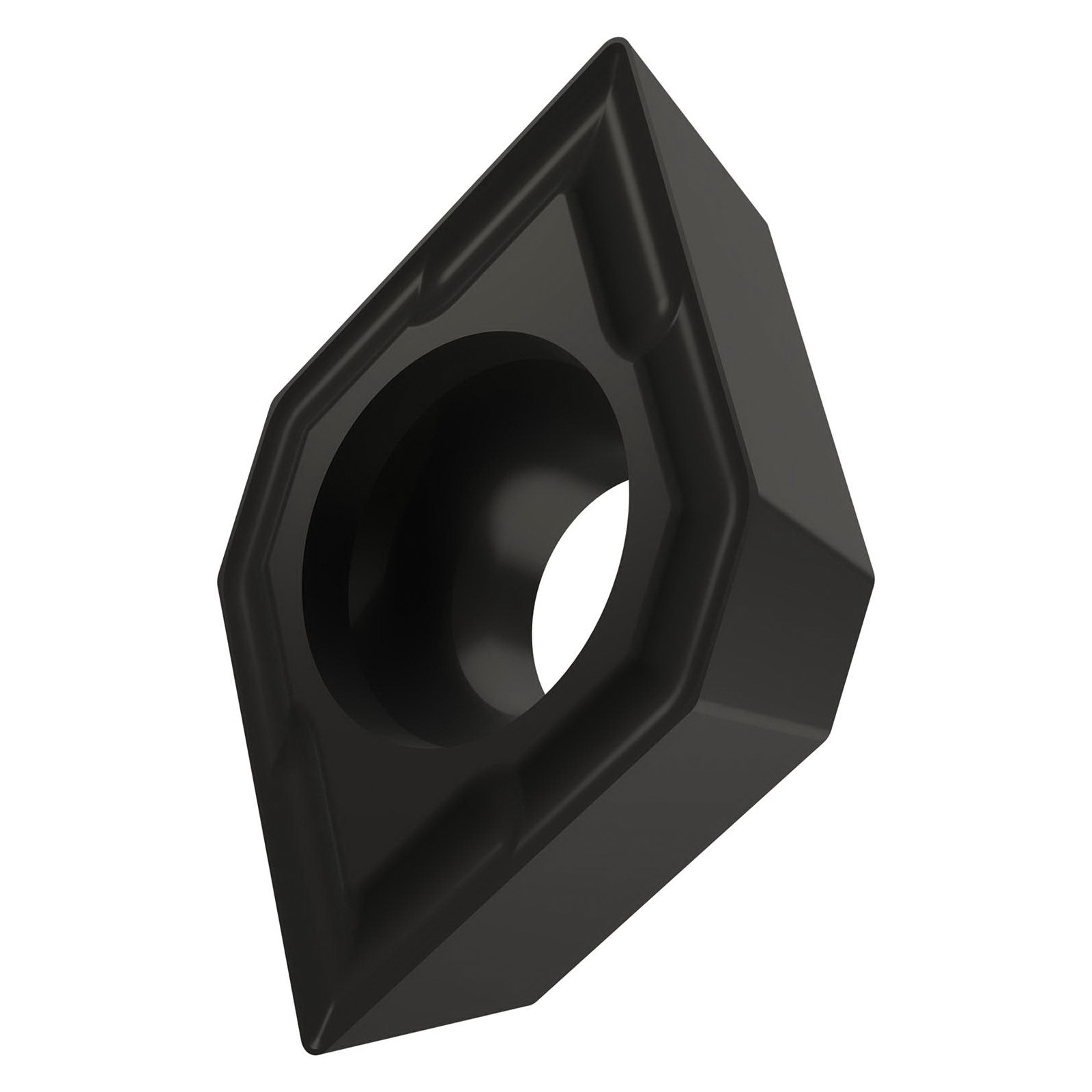

EPMT 1.81.50.5-NF2:T7325 TURNING INSERT - POSITIVE
EPMT 1.81.50.5-NF2:T7325 TURNING INSERT - POSITIVE
PRA7156314
7156314
6.62
/ EA
http://schema.org/OutOfStock
/Product/PRA7156314
- Chipbreaker: NF2
- Corner Radius: 0.2mm
- Hole Diameter: 2.5mm
- Included Angle: 75°
- Inscribed Circle: 5.56mm
- Insert Size: 1.81.50.5
- Insert Style: EPMT
- ISO Code: EPMT 050202E-NF2 T7325
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.098
- Maximum Depth of Cut Metric: 2.5
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 5
- Shape: Diamond
- Surface Treatment: CVD-Al2O3 Coated
- Thickness: 2.38mm
- Type: 5.7mm
- ANSI Code: EPMT 1.81.50.5-NF2 T7325
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: T7325
Single-sided positive turning insert, 75° rhomboid with 11° clearance, inscribed circle diameter of 5.56mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining
- Application
- Item Features
- Standards
Semi-Finishing and Light Roughing
- T7325 grade first choice and most versatile grade for turning stainless steels
- It has been developed to complement the existing T7335 grade
- First choice for highly productive machining, also suitable for mid unfavorable cutting conditions
- Functional gradient substrate
- Special coating MT-CVD with textured alpha Al2O3
- High cutting edge strength
- Resistance to formation of cracks
- Versatility
- High performance and tool life
- Increased operational reliability
- Reduced built-up edge
- Suitable for interrupted cut and difficult to machine materials
