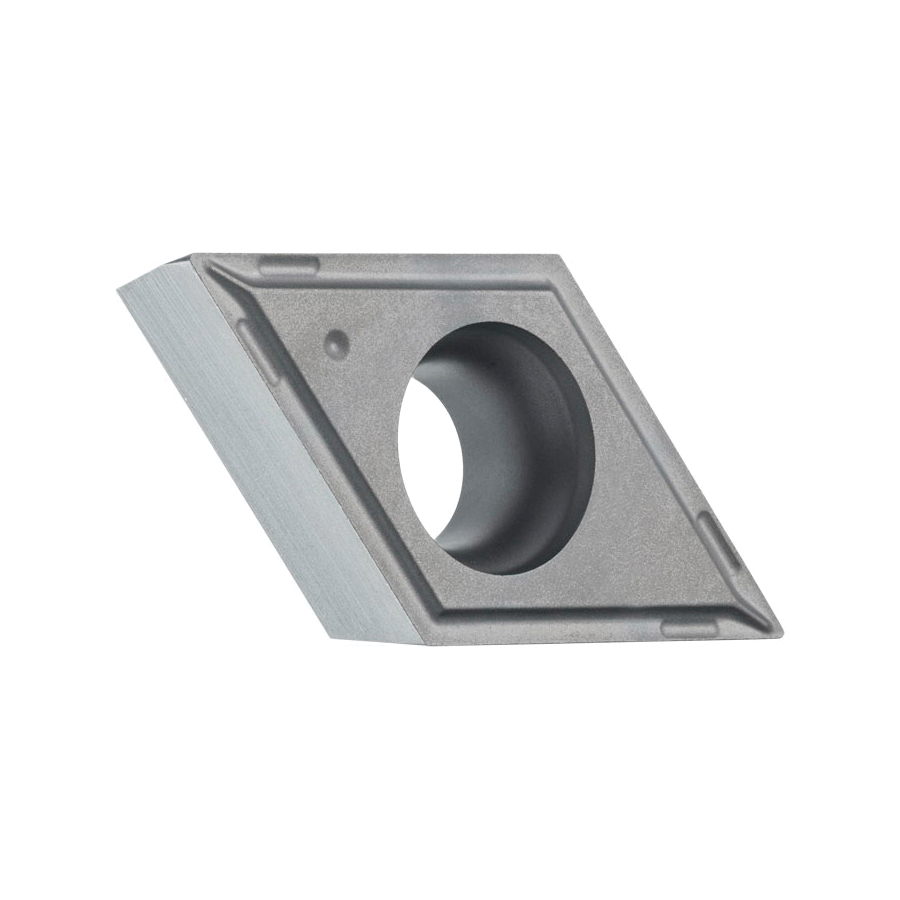

DCGT 32.50.5-FF2:TT010 TURNING INSERT - POSITIVE
DCGT 32.50.5-FF2:TT010 TURNING INSERT - POSITIVE
PRA7080623
7080623
15.63
/ EA
http://schema.org/OutOfStock
/Product/PRA7080623
- Applicable Materials: Stainless Steel and Steel
- Chipbreaker: FF2
- Corner Radius: 0.008in
- Hole Diameter: 0.173in
- Included Angle: 55°
- Inscribed Circle: 3/8in
- Insert Size: 32.50.5
- Insert Style: DCGT
- ISO Code: DCGT 11T302E-FF2:TT010
- Material: Carbide
- Material Grade: M, P
- Maximum Depth of Cut Decimal Inch: 0.098
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 11
- Shape: Diamond
- Thickness: 0.156in
- Type: 0.457in
- ANSI Code: DCGT 32.50.5-FF2:TT010
- Country of Origin: FR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TT010
- Manufacturer Name: Dormer Pramet
Single-sided positive turning insert, 55 deg rhomboid with 7 deg clearance, inscribed circle diameter of 9.525 mm, 3.97 mm THK, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker FF2 with rounded cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels.
- Application
- Standards
Fine and Finishing Turning
