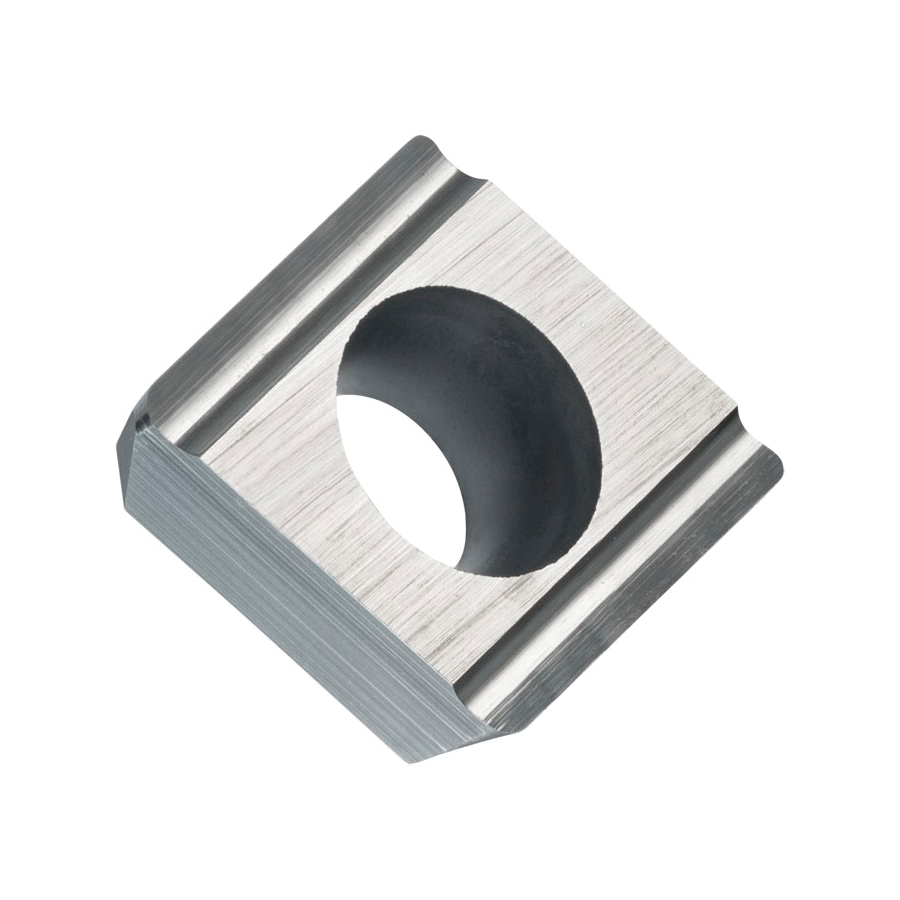

CPGX 21.51FL-JR:TT010 TURNING INSERT - POSITIVE
CPGX 21.51FL-JR:TT010 TURNING INSERT - POSITIVE
PRA7080617
7080617
16.44
/ EA
http://schema.org/OutOfStock
/Product/PRA7080617
- Chipbreaker: JR
- Corner Radius: 0.4mm
- Hand Direction: Left Hand
- Hole Diameter: 2.8mm
- Included Angle: 80°
- Inscribed Circle: 6.35mm
- Insert Size: 60204
- Insert Style: CPGX
- ISO Code: CPGX 060204FL-JR:TT010
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.165
- Maximum Depth of Cut Metric: 4.2
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 6
- Shape: Diamond
- Thickness: 2.38mm
- Type: 6.4mm
- Country of Origin: FR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TT010
- Manufacturer Name: Dormer Pramet
Special design positive turning insert, 80 deg rhomboid with 11 deg clearance, inscribed circle diameter of 6.35 mm, 2.38 mm THK, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker JR with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a left handed turning tool.
- Application
- Standards
For turning and boring operations
