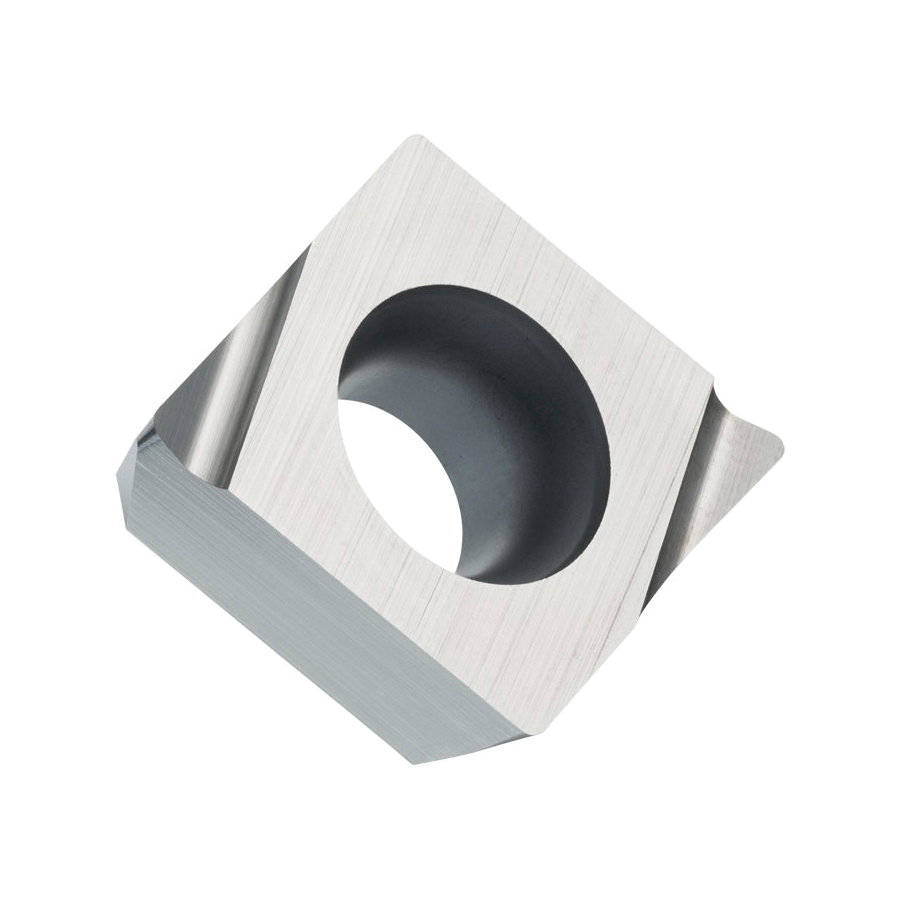

CPGX 32.51FL-JQ:TT010 TURNING INSERT - POSITIVE
CPGX 32.51FL-JQ:TT010 TURNING INSERT - POSITIVE
PRA7080614
7080614
18.94
/ EA
http://schema.org/OutOfStock
/Product/PRA7080614
- Chipbreaker: JQ
- Corner Radius: 0.4mm
- Hand Direction: Left Hand
- Hole Diameter: 4.4mm
- Included Angle: 80°
- Inscribed Circle: 9.525mm
- Insert Size: 09T304
- Insert Style: CPGX
- ISO Code: CPGX 09T304FL-JQ:TT010
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.047
- Maximum Depth of Cut Fractional Inch: 3/64
- Maximum Depth of Cut Metric: 1.2
- Rake: Positive
- Relief Angle: 11°
- Seat Size: 9
- Shape: Diamond
- Thickness: 3.97mm
- Type: 9.7mm
- Country of Origin: FR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TT010
- Manufacturer Name: Dormer Pramet
Special design positive turning insert, 80 deg rhomboid with 11 deg clearance, inscribed circle diameter of 9.525 mm, 3.97 mm THK, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker JQ with sharp cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine machining of steels with a left handed turning tool.
- Application
- Standards
Turning and Boring Operations
