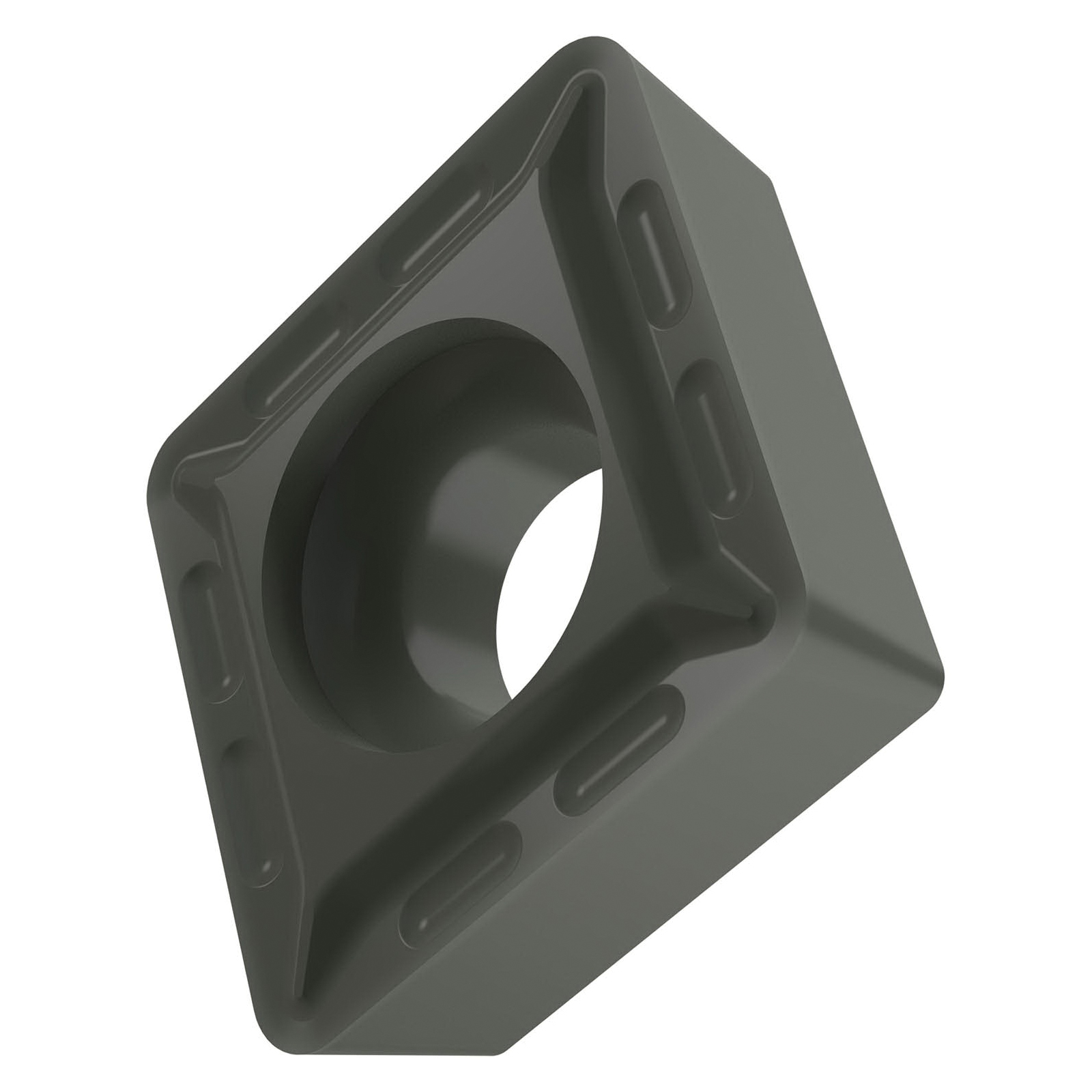

CCMT 21.50.5-FF2:TT010 TURNING INSERT - POSITIVE
CCMT 21.50.5-FF2:TT010 TURNING INSERT - POSITIVE
PRA7080612
7080612
7.06
/ EA
http://schema.org/OutOfStock
/Product/PRA7080612
- Applicable Materials: Stainless Steel and Steel
- Chipbreaker: FF2
- Corner Radius: 0.08in
- Hole Diameter: 0.11in
- Included Angle: 80°
- Inscribed Circle: 1/4in
- Insert Size: 21.50.5
- Insert Style: CCMT
- ISO Code: CCMT 060202E-FF2:TT010
- Material: Carbide
- Material Grade: M, P
- Maximum Depth of Cut Decimal Inch: 0.059
- Rake: Positive
- Relief Angle: 7°
- Seat Size: 6
- Shape: Diamond
- Surface Treatment: Cermet Coated
- Thickness: 0.094in
- Type: 0.252in
- ANSI Code: CCMT 21.50.5-FF2:TT010
- Country of Origin: FR
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: TT010
- Manufacturer Name: Dormer Pramet
Single-sided positive turning insert, 80 deg rhomboid with 7 deg clearance, inscribed circle diameter of 6.35 mm, 2.38 mm THK, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FF2 with rounded cutting edges, in grade TT010, an uncoated cermet within ISO range P01-P10, for fine to medium machining of steels.
- Application
- Standards
Fine Turning and Finishing
